UV Chip

Catalog
  • UVB290-350NM
    0.5W 100MA 4-4.5V 30-35MW 335NM 340NM 345NM led SMD diode
    Add to cart

    0.5W 100MA 4-4.5V 30-35MW 335NM 340NM 345NM led SMD diode

    Lighting Color (Peak Wavelength):335~345nm
    -Surface Mount Type:3.5×3.5×2.85（L×W×H）[Unit:mm]
    -Viewing Angle(Directivity):Typical 60°
    -Soldering Methods:Reflow Soldering

    Forward Voltage:4-5V

    Radiant Flux:30-35MW

    Forward Current:<150MA

    Power:0.5w

    Spectrum Half Width:11NM

    These values are measured by the Photonwave optical spectrum analyzer within the
    following tolerances.
    -Forward Voltage(vf):±0.1V
    -Peak Wavelength(λp):±3.0nm
    -Radiant Flux(Φe) : ±10%
    Although all LEDs are tested by Photonwave equipment, some values may vary slightly
    depending on the conditions of the test equipment.

    Applications
    Disinfection,Phototherapy,Fluorescent Spectroscopy, Sensor Light,Bio-Analysis /Detection,Counterfeit Detectors, etc.

  • UVB290-350NM
    3W 4.5v 335nm 340nm 345nm with 30degree lens 3535 led light emitting diode
    Add to cart
    3W 4.5v 335nm 340nm 345nm with 30degree lens 3535 led light emitting diode
    Lighting Color (Peak Wavelength):335~345nm
    -Surface Mount Type:3.5×3.5×3.45（L×W×H）[Unit:mm]
    -Viewing Angle(Directivity):Typical 30°
    -Soldering Methods:Reflow Soldering
    Power:3W
    Voltage:4-5V
    Current:350-500mA
    Radiation intensity：70-120mw
    light emitting diode Applications: Disinfection,Phototherapy,Fluorescent Spectroscopy, Sensor Light,Bio-Analysis /Detection, Counterfeit Detectors, etc.
  • UVC200-280NM
    Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm
    Add to cart

    Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm

    Features:

    Light Source for Sterilization and Medical Application
    ▪ Lighting Color(Peak Wavelength) : 230 nm
    ▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
    ▪ Soldering Methods: Reflow Soldering

    Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)

    Forward Voltage:6-8V;

    Radiant Flux:3MW

    Peak wavelength:225-230-235nm

    Spectrum Half Width:11NM

    Viewing Angle:TBD

    Thermal Resistance Note 2
    (Junction to Solder point):TBD

    Package:1000pcs/roll

  • UVB290-350NM
    led smd chip UV-A 320NM 325NM 330NM uv 3535 diode
    Add to cart

    led smd chip UV-A 320NM 325NM 330NM uv 3535 diode
    Specifications:

    1. Shapes: LED SMD diode
    2.Wavelength: 320-330NM
    3. Forward voltage (VF): 5-6.5V

    4. Lens : Quartz lens
    5. Life Span: 10,000 Hours
    6. With RoHS & CE Approved
    7. Beam angle: 30/60 degree

    8.Package:3535
    9.Power:0.5W 100mA /3W 350-500mA
    10.Radiation intensity:0.5W 100mA 20MW /3W 350-500mA 70MW

  • 3W
    LED 3W 340NM 405NM 450NM 505NM 510NM 546NM 570NM 578NM 660NM 670NM with 30degree lens smd diode for medical
    Add to cart

    LED 3W 340NM 405NM 450NM 505NM 510NM 546NM 570NM 578NM 660NM 670NM with 30degree lens smd diode for medical

    1000PCS/Roll

    Lighting Color (Peak Wavelength):340NM 50-70MW、405NM 600-700MW、450NM 15-20LM、505NM 40-50LM、510NM 60-70LM、546NM、570NM 10-15LM、578、630NM 30-40LM、660NM
    320-340MW、670NM 320-340MW
    Surface Mount Type:340nm 3.5×3.5×3.45mm,other 3.8*3.8*3.5mm （L×W×H）[Unit:mm]
    Viewing Angle(Directivity):Typical Quartz lenses 30°
    Soldering Methods:Reflow Soldering
    Applications: Disinfection,Phototherapy,Fluorescent Spectroscopy, Sensor Light,Bio-Analysis /Detection, Counterfeit Detectors, medical etc.
  • UVC200-280NM

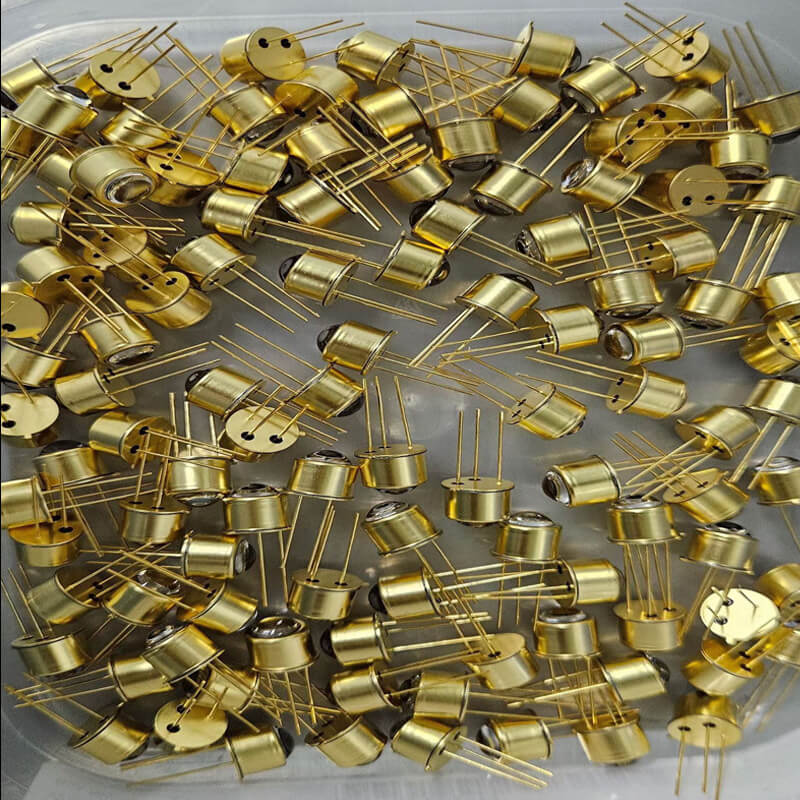

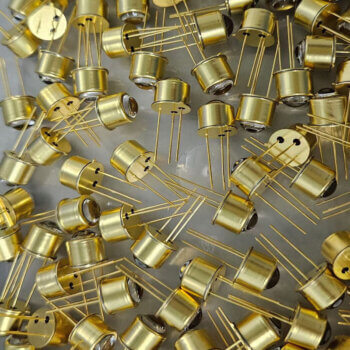

    to-39 LED 225nm 235nm 254nm 265nm 270nm 295nm 308nm DIP Lamp
    Add to cart

    to-39 LED 225nm 235nm 254nm 265nm 270nm 295nm 308nm DIP Lamp

    Specifications:

    1. Shapes: dip led
    2. Emitting color:  225-235nm/250-260NM / 260-270NM / 270-280NM / 280-290NM / 290-300NM / 300-315NM
    3. DC forward voltage (VF):  225-235nm 6-8.5V, 250-315NM 5-7V

    4. Lens : Quartz lens
    5. Life Span: 10,000 Hours
    6. With RoHS & CE Approved
    7. Beam angle: 7 degree
    8.Forward Current: 20-100ma

    9.size:30 degree:Φ9.14*8.61mm (Φ × D × H) [Unit: mm]

    (UVC 225-315NM)Applications :

    1.Air and water purification;
    2. UV detection and communication technology;
    3.Food processing and preservation, food and beverage packaging, fresh storage, etc.;
    4. medical care, dermatological treatment, etc;

  • LED UV
    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp
    Add to cart

    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp

    Power:30W 60W 100W

    Peak Wavelength:254nm 265nm 270nm 285nm 295nm 300nm 310nm 315nm 325nm Can be customized according to customer requirements

    Voltage:85-265V

    Light intensity：30W  300-700MW, 60W 600-1400MW, 100W 1400-2400MW;

    Applications: surface curing, detection, sterilization, sensors, medical treatment, etc.
