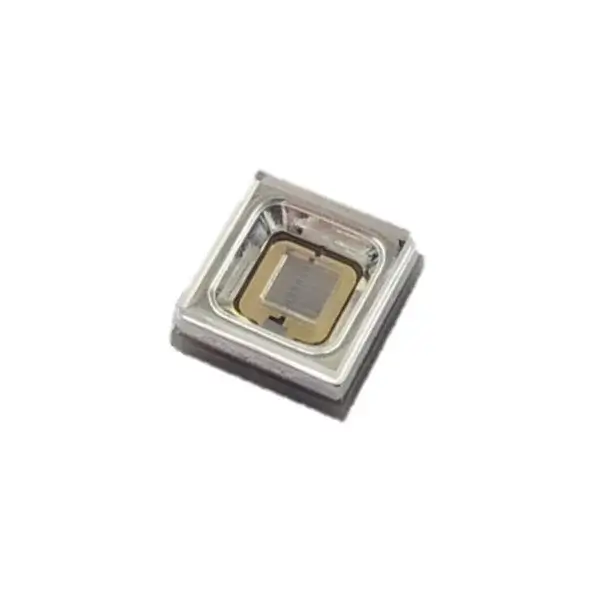

Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm

Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm

Features:

Light Source for Sterilization and Medical Application
▪ Lighting Color(Peak Wavelength) : 230 nm
▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
▪ Soldering Methods: Reflow Soldering

Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)

Forward Voltage:6-8V;

Radiant Flux:3MW

Peak wavelength:225-230-235nm

Spectrum Half Width:11NM

Viewing Angle:TBD

Thermal Resistance Note 2
(Junction to Solder point):TBD

Package:1000pcs/roll

Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm

Features:

Light Source for Sterilization and Medical Application
▪ Lighting Color(Peak Wavelength) : 230 nm
▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
▪ Soldering Methods: Reflow Soldering

Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)

Forward Voltage:6-8V;

Radiant Flux:3MW

Peak wavelength:225-230-235nm

Spectrum Half Width:11NM

Viewing Angle:TBD

Thermal Resistance Note 2
(Junction to Solder point):TBD

Package:1000pcs/roll

Notes :
1. Measured by optical spectrum analyzer of YSLED, some values may vary depending
on the conditions of the test equipment.
– Forward Voltage (Vf) : ±0.1V
– Peak Wavelength (λ p ) : ± 3nm
– Radiant Flux (P o ) : ±10%
2. Thermal resistance can be increased substantially depending on the heat sink design/operating
condition, and the maximum possible driving current will decrease accordingly.

applications:

▪ Disinfection, Phototherapy, Fluorescent Spectroscopy, Sensor Light,
Bio-Analysis / Direction, Counterfeit Detector etc.

Operating the LED beyond the listed maximum ratings may affect device reliability and
cause permanent damage. These or any other conditions beyond those indicated under
recommended operating conditions are not implied. The exposure to the absolute maximum
rated conditions may affect device reliability.
– The LEDs are not designed to be driven in reverse bias.
