3528
-

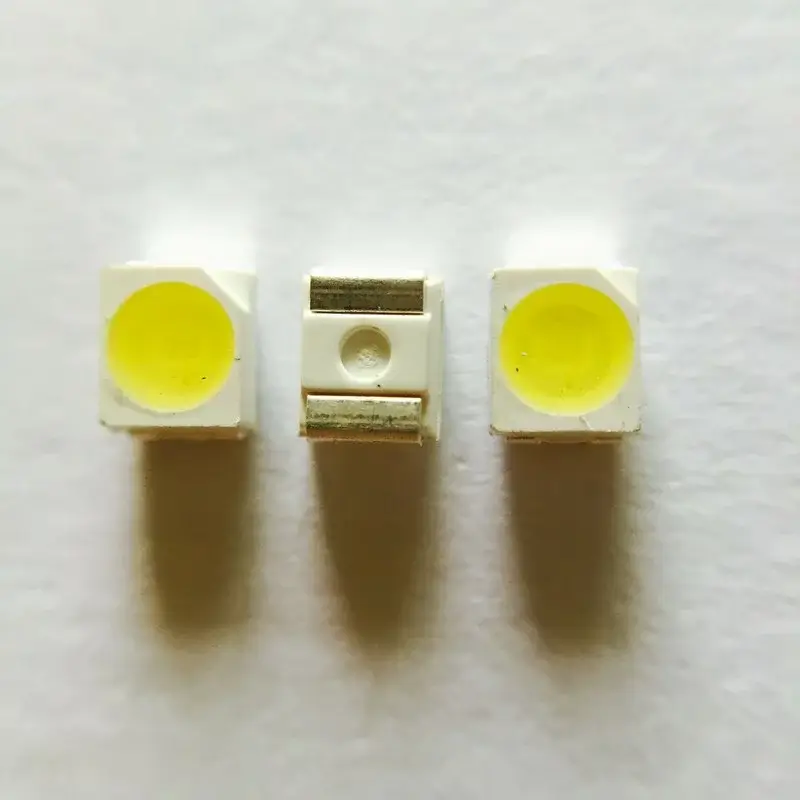

LED SMD CHIPplcc2 Phosphor Converted red yellow blue green white purple pink amber RGB led 3528 diode 1210 chipAdd to cartplcc2 Phosphor Converted red yellow blue green white purple pink amber RGB led 3528 diode 1210 chip
Power:0.06-0.2W
CCT/Waverlength: Phosphor Converted red yellow blue green white purple pink amber led diode
Package:3528
Voltage:2v/3v
-

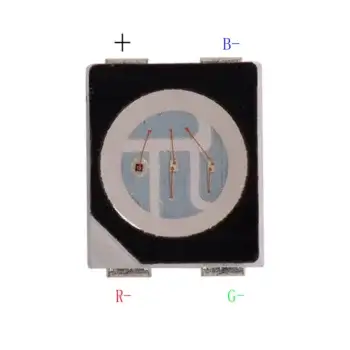

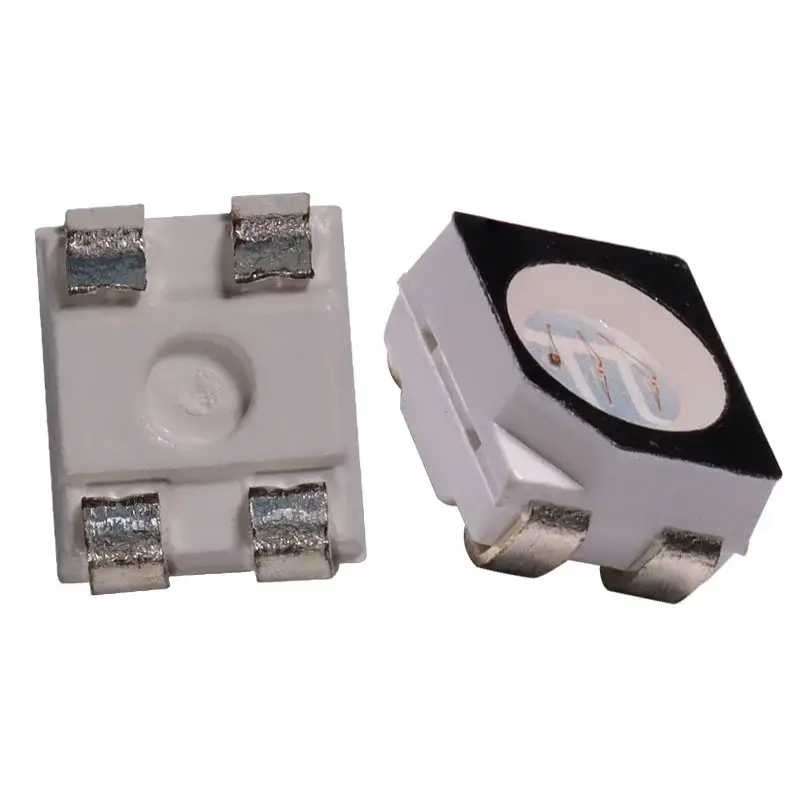

3528PLCC4 epistar sanan chip 3528 RGB SMD common anode smd led diodeAdd to cartPLCC4 epistar sanan chip 3528 RGB SMD common anode smd led diode
power:0.2W
Currnet:3*20ma
Wavelength:RGB, Red:620-630nm, Green:520-530nm,Blue 460-470nm,
Voltage:Red:1.8-2.4V, Green:2.8-3.2v, Blue:2.8-3.2v
-

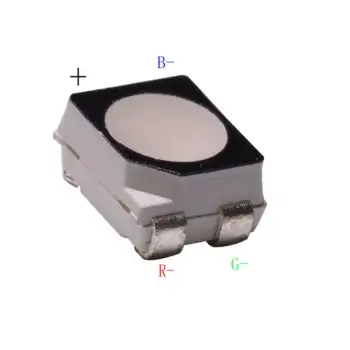

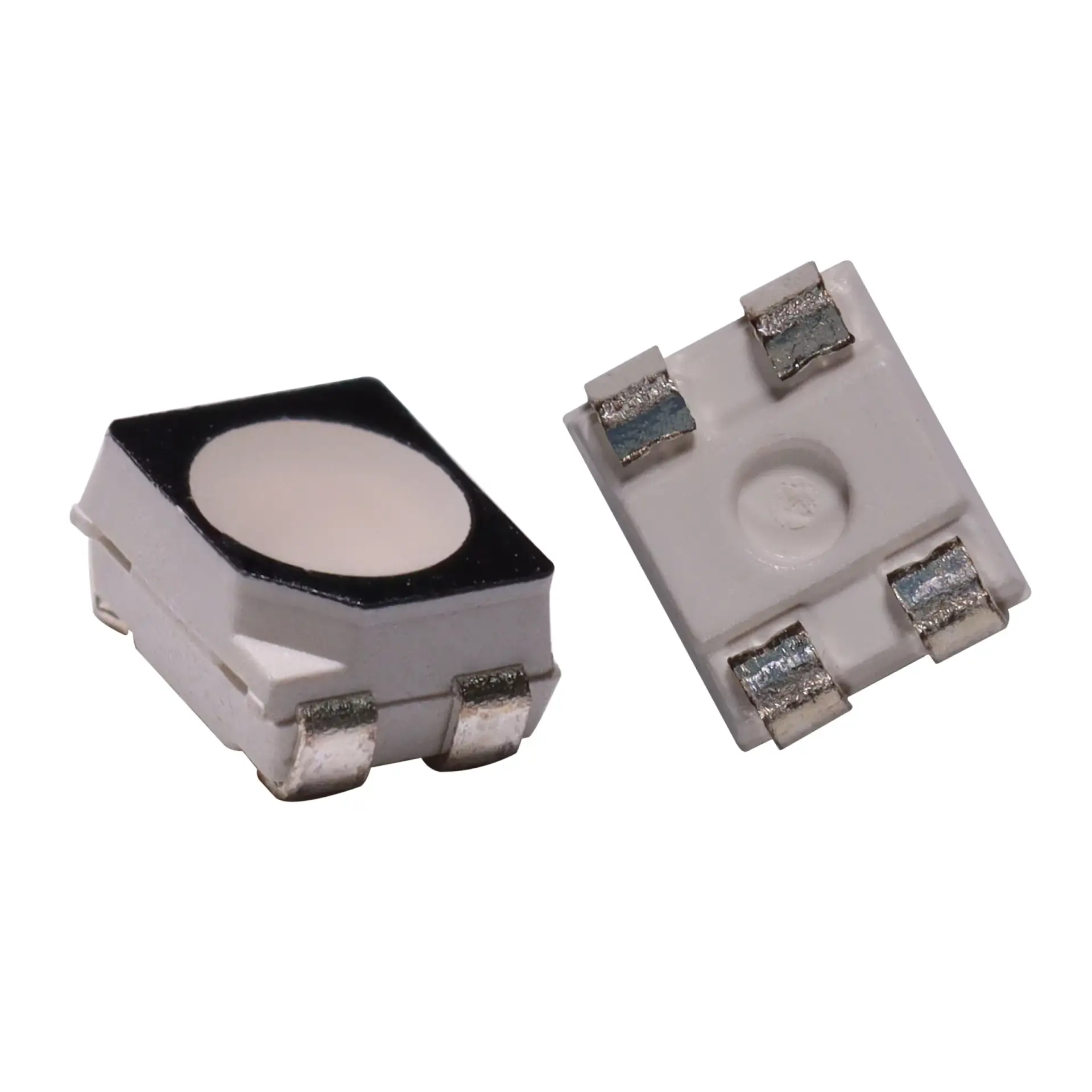

3528foggy 3528rgb for Display LED strip moduleAdd to cartfoggy 3528rgb for Display LED strip module
power:0.2W
Currnet:3*20ma
Wavelength:RGB, Red:620-630nm, Green:520-530nm,Blue 460-470nm,
Voltage:Red:1.8-2.4V, Green:2.8-3.2v, Blue:2.8-3.2v
PLCC4 3528 RGB light-emitting diodes (LEDs) are widely used in various applications and have gained popularity among European and American customers. These LEDs are known for their vibrant colors and energy efficiency.
-

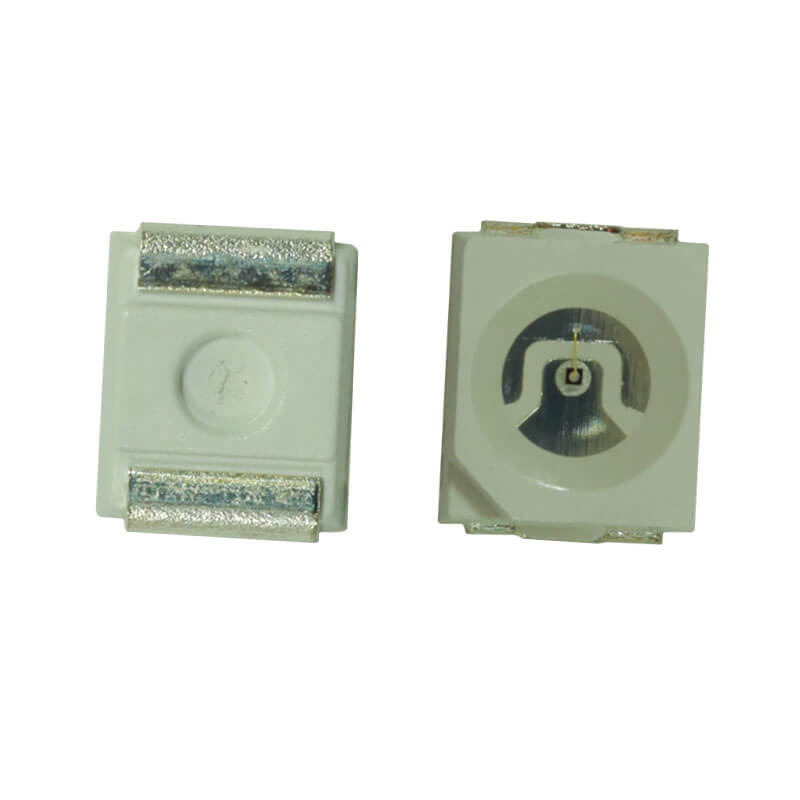

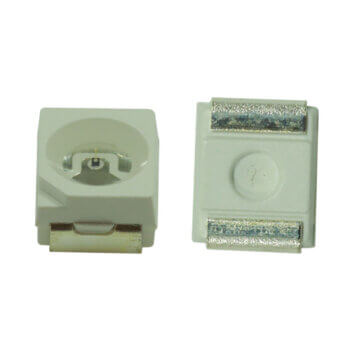

3528infrared led 3528 plcc2 840nm 850nm 860nm 945nm 950nm 1210 smd diodeAdd to cartinfrared led 3528 plcc2 840nm 850nm 860nm 945nm 950nm 1210 smd diode
LED:3528
Power:0.06W
Voltage:1.4-1.8v
Current:20mA
Size:3.5*2.8*1.8mm
Wavelength:840-860nm/940-960nm
packing:2000pcs/roll
-

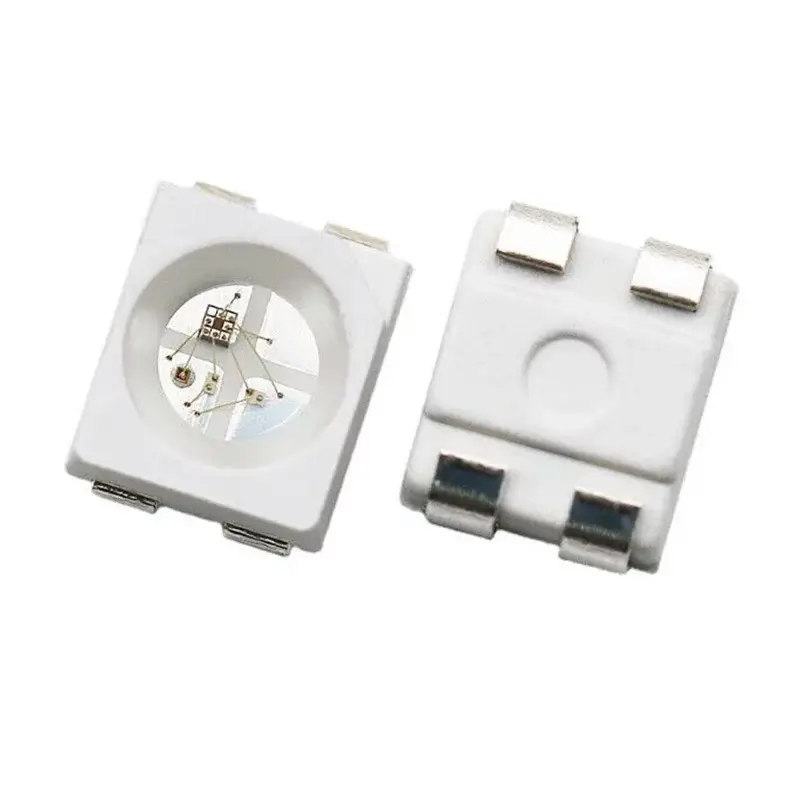

35283528RGB+IC ws2812b LED SMD chip diodeAdd to cart3528RGB+IC ws2812b LED SMD chip diode
Feature description Power
- input voltage: 3.5-7.5V OUT R/G/B
- Constant current value: 12mA Top SMD
- internally integrates high-quality external control single-wire serial cascaded constant current IC
- The control circuit and chip are integrated in the SMD 3528 components to form a complete external
control pixel, and the color temperature effect is uniform and consistent high
- Built-in data shaping circuit, after any pixel receives the signal, it will be output after waveform shaping to ensure that the
line waveform distortion will not accumulate
- By default, the light is off after power-on
- Gray scale adjustment circuit (256 levels of gray scale adjustable)
- Data shaping: After receiving the data of this unit, the subsequent data will be shaped and output automatically
- Built-in high-precision and high-stability oscillator.
- Single-line data transmission, unlimited cascading
- High data protocol compatibility
- Data transmission rate: 800Kbps
-

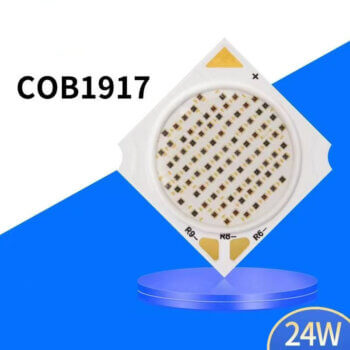

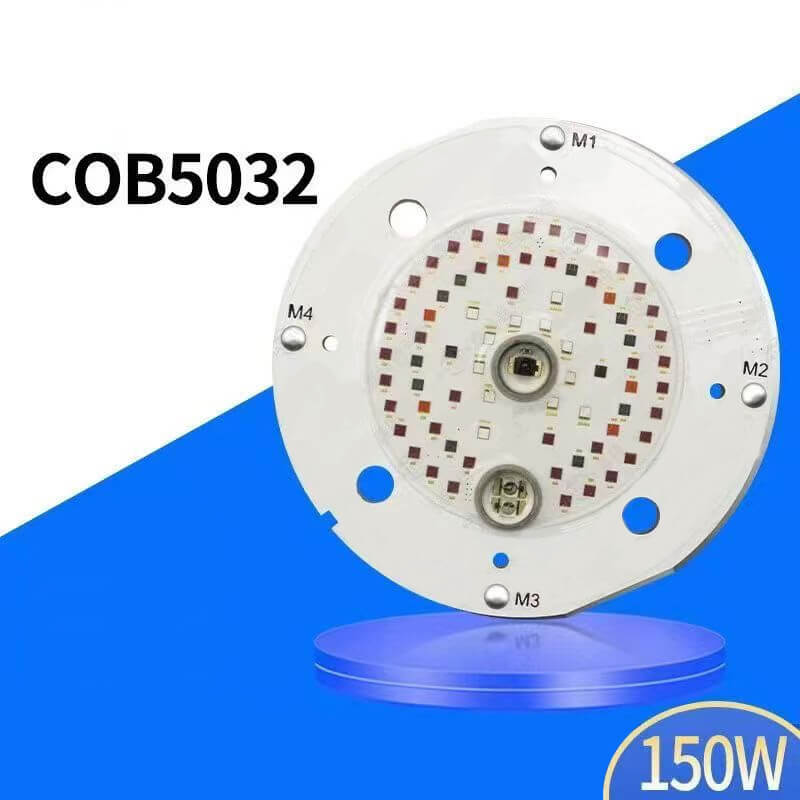

3528infrared cob led light therapy lampAdd to cartinfrared cob led light therapy lamp
power :be customized
wavelength:620-625nm 650nm 660-670nm 590nm 525-530nm 463-468nm 810nm 830nm 850nm 940nm 1064nm etc be customized
Dimensions size:be customized
power :be customized
1. Utilizing the photothermal effect, using specific wavelengths of light to illuminate the skin or certain tissue cells of the human body to promote or inhibit growth, in order to achieve therapeutic goals.
Phototherapy utilizes biological tissues to absorb light of different wavelengths and convert them into thermal and chemical energy, resulting in a series of chemical reactions in the body to achieve the desired therapeutic effects
The therapeutic mechanism of phototherapy can be summarized as follows:
Decomposition → Photopolymerization → Photooxidation → Photosensitization
4. Compared to traditional light sources, LEDs better meet the special requirements of phototherapy for light sources, which include a wide range of light wavelength selection, controllable and adjustable radiation intensity and radiation spot, pure light color, no harmful spectral components, and electrical safety.
