LED 3W 340NM 405NM 450NM 505NM 510NM 546NM 570NM 578NM 660NM 670NM with 30degree lens smd diode for medical
1000PCS/Roll
Lighting Color (Peak Wavelength):340NM 50-70MW、405NM 600-700MW、450NM 15-20LM、505NM 40-50LM、510NM 60-70LM、546NM、570NM 10-15LM、578、630NM 30-40LM、660NM
320-340MW、670NM 320-340MW
320-340MW、670NM 320-340MW

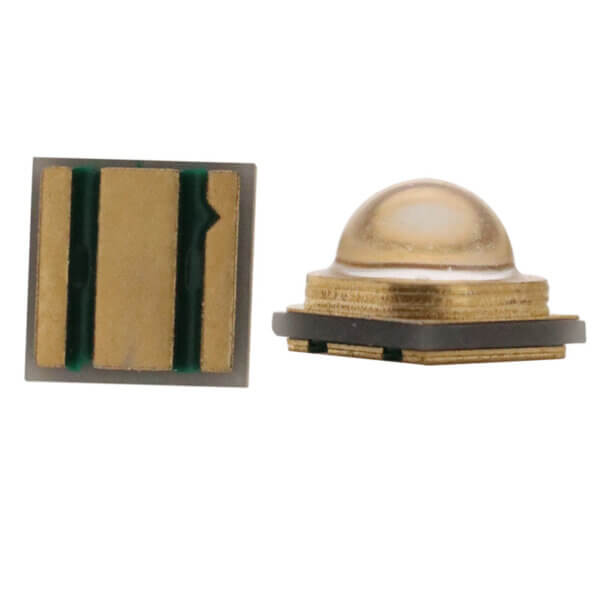

Surface Mount Type:340nm 3.5×3.5×3.45mm,other 3.8*3.8*3.5mm （L×W×H）[Unit:mm]
Viewing Angle(Directivity):Typical Quartz lenses 30°
Soldering Methods:Reflow Soldering
Applications: Disinfection,Phototherapy,Fluorescent Spectroscopy, Sensor Light,Bio-Analysis /Detection, Counterfeit Detectors, medical etc.
