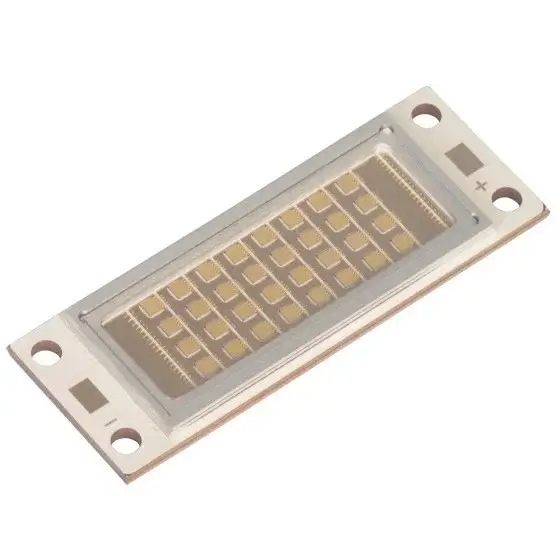

VCSEL laser module COB 808NM 100W machine vision infrared security face recognition radar light source

VCSEL laser module COB 808NM 100W machine vision infrared security face recognition radar light source

Product features: Test Condition Pulse 25℃, Iop=15.0A

Optical Output Power:100W

Peak Wavelength:680NM/808NM/950NM/940NM

Size:44.0*16.0*2.8mm

Threshold current:0.6-1.0A

Forward Voltage:14-16V

Slope Efficiency:0.9-1.0W/A

Power Conversion Efficiency:30-38%

Spectral Width:2.5NM

Wavelength coefficient:0.07nm/°C

Beam Full Divergence:18-26Deg

Storage Temp:-40-+100°C

Operating Temp:-20-+80°C

High radiant intensity

SMT solderable,RoHS compliant,High reliability,ESD HBM 4000 V

Product Application:Access Control (IRIS/Vein Scan, Face
Recognition; 3D TOF Applications; Gesture Recognition; Augmented Reality, Mixed Reality; Infrared Uniform Lighting; Virtual Reality

Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

VCSEL laser module COB 808NM 100W machine vision infrared security face recognition radar light source

Product features: Test Condition Pulse 25℃, Iop=15.0A

Optical Output Power:100W

Peak Wavelength:680NM/808NM/950NM/940NM

Size:44.0*16.0*2.8mm

Threshold current:0.6-1.0A

Forward Voltage:14-16V

Slope Efficiency:0.9-1.0W/A

Power Conversion Efficiency:30-38%

Spectral Width:2.5NM

Wavelength coefficient:0.07nm/°C

Beam Full Divergence:18-26Deg

Storage Temp:-40-+100°C

Operating Temp:-20-+80°C

High radiant intensity

SMT solderable,RoHS compliant,High reliability,ESD HBM 4000 V

Product Application:Access Control (IRIS/Vein Scan, Face
Recognition; 3D TOF Applications; Gesture Recognition; Augmented Reality, Mixed Reality; Infrared Uniform Lighting; Virtual Reality
