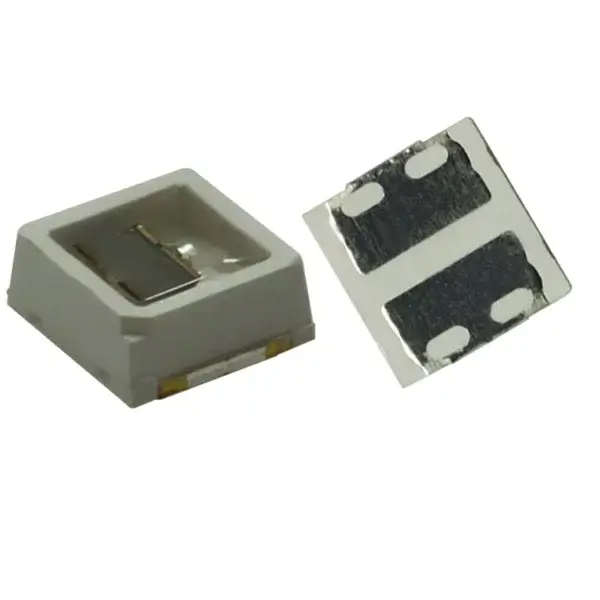

3535 ceramic red laser 650nm smd light source for 3D Sensing Distance Measurement

3535 ceramic red laser 650nm smd light source for 3D Sensing Distance Measurement

Product conformation:

Packaging glue: colorless transparent silica gel

Packaging bracket:3535 ceramic

Luminous color: Red wavelength 650nm

Electrostatic sensitive material

Applications:3D Sensing Application ,Distance Measurement,Laser leveler,Laser hair

ABSOLUTE MAXMUM RATING

Optical Outpurt Power:5MW

Laser Diode Reverse Voltage:2V

* Operating Temperature:-10-+50℃

Storage Temperature:-40-+85℃

Threshold Current:11-15mA

Operating Current:17-22mA

Operating Voltage:2.2-2.5v

Slope Efficiency:0.7-1.2mw/mA

Lasing Wavelength:645-665NM

Beam Divergence:θII:5-12degree,θ⊥30-45degree

Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

3535 ceramic red laser 650nm smd light source for 3D Sensing Distance Measurement

Product conformation:

Packaging glue: colorless transparent silica gel

Packaging bracket:3535 ceramic

Luminous color: Red wavelength 650nm

Electrostatic sensitive material

Applications:3D Sensing Application ,Distance Measurement,Laser leveler,Laser hair

ABSOLUTE MAXMUM RATING

Optical Outpurt Power:5MW

Laser Diode Reverse Voltage:2V

* Operating Temperature:-10-+50℃

Storage Temperature:-40-+85℃

Threshold Current:11-15mA

Operating Current:17-22mA

Operating Voltage:2.2-2.5v

Slope Efficiency:0.7-1.2mw/mA

Lasing Wavelength:645-665NM

Beam Divergence:θII:5-12degree,θ⊥30-45degree

Note:

Theta 1/2 is the half-value Angle, which refers to the Angle of radiation intensity from the optical center line to the optical center line, which is 1/2 of the light intensity of the optical center line.

The test of the above radiation flux allows a tolerance of ± 10%, voltage measurement error of ± 0.1v, and wavelength measurement error of ± 1nm.

Please use constant current drive,and the current devlation of constant voltage drive will be large.
