UVC200-280NM

  • UVB290-350NM
    led 0.2W0.5W1W3W5W UVC LED 222NM 254NM 260NM 265NM 270NM 285NM 290NM 300NM 308NM SMD diode
    Add to cart

    led 0.2W0.5W1W3W5W UVC LED 222NM 254NM 260NM 265NM 270NM 285NM 290NM 300NM 308NM SMD diode

    lRadiation intensity:0.2W 3-5MW/0.5W 10-18MW/1W 20-30MW/3W 30-70MW/5W 70-120M/12W 120-280MW

    Forward voltage (VF): 225-240nm 8-13V/ 250-315NM  5-7V/ 4LEDs 6868 is 12V

    Wavelength:225-240NM/250-260NM/260-270NM/270-280NM/280-290NM/290-300NM/300-315NM

  • LED UV
    0.2W0.5W1W3W5W flat lens uvc 254NM 250NM 265NM 275NM 280NM 295NM 310NM 308NM uvb led smd
    Add to cart

    0.2W0.5W1W3W5W flat lens uvc 254NM 250NM 265NM 275NM 280NM 295NM 310NM 308NM uvb led smd

    Radiation intensity:0.2W 3-5MW/0.5W 10-18MW/1W 20-30MW/3W 30-70MW/5W 70-120M

    Forward voltage (VF):   5-7V

    Wavelength:250-260NM/260-270NM/270-280NM/280-290NM/290-300NM/300-315NM

  • LED UV
    led smd chip UV-B 320NM 325NM 335NM 340NM 345NM 350NM 330NM 355NM uv 3535 diode
    Add to cart

    led smd chip UV-B 320NM 325NM 335NM 340NM 345NM 350NM 330NM 355NM uv 3535 diode

    lRadiation intensity:0.5W 10-15MW/2W 10-18MW/3W 50-70MW/ 70-90MW/90-120M

    Forward voltage (VF): 4-5.5v

    Wavelength:320-330NM/330-340NM/340-350NM/350-360NM

  • LED UV
    0.5W 1W 3W 5W UV-C 254NM 253.7NM 255NM 260NM LED SMD diode for optical sensors
    Add to cart

    0.5W 1W 3W 5W UV-C 254NM 253.7NM 255NM 260NM LED SMD diode for optical sensors

    Radiation intensity:0.5W 10-18MW/1W 20-30MW/3W 30-50MW/5W 70-90M

    Forward voltage (VF):    5-7V

    Wavelength:250-260NM

    Current:0.5W 100MA, 1W 150MA, 3W 350-500MA, 5W 500-700MA



  • LED UV
    0.2W 0.5W 1W 3W 5W 250NM 253.7NM 258NM 254NM LED 3535 SMD UVC chip for Medical phototherapy
    Add to cart

    0.2W 0.5W 1W 3W 5W 250NM 253.7NM 258NM 254NM LED 3535 SMD UVC chip for Medical phototherapy

    Radiation intensity:0.2W 3-7MW/0.5W 10-18MW/1W 20-30MW/3W 30-50MW/5W 70-90MW

    Forward voltage (VF):    5-7V

    Wavelength:250-260NM

    Current:0.2W 40MA,0.5W 100MA, 1W 150MA, 3W 350-500MA, 5W 500-700MA



  • LED UV
    5mw 10mw 15mw 30mw 50mw 70mw 90mw flat lens uv-c 254NM 250NM 255NM 253.7NM 260NM led smd diode
    Add to cart

    5mw 10mw 15mw 30mw 50mw 70mw 90mw flat lens uv-c 254NM 250NM 255NM 253.7NM 260NM led smd diode

    Radiation intensity:0.2W 3-5MW/0.5W 10-18MW/1W 20-30MW/3W 30-50MW/5W 70-90M

    Forward voltage (VF):   5-7V

    Wavelength:250-260NM

    Current:0.2W 40MA, 0.5W 100MA, 1W 150MA, 3W 350-500MA, 5W 500-700MA

  • UVB290-350NM
    led 6W uv-c 12v 6868package 250nm 254nm 253.7nm 260nm smd diode
    Add to cart

    led 6W uv-c 12v 6868package 250nm 254nm 253.7nm 260nm smd diode

    Power:6W

    Current:450mA

    Voltage:10-14V

    Size:6.8*6.8MM

    Beam angle:120

    Wavelength:250-260nm,Can be customized according to customer needs:260-270nm/270-280nm/280-290nm/290-300nm/300-315nm/320-330nm/330-340nm/340-350nm/350-360nm

  • UVB290-350NM
    led smd 6565 with 60degree lens 12v uvc 254nm 255nm 257nm 250nm uv led chip for sensor
    Add to cart

    led smd 6565 with 60degree lens 12v uvc 254nm 255nm 257nm 250nm uv led chip for sensor

    power:6W

    Voltage:12V

    Current:450ma

    Wavelength:250-260nm,Can be customized according to customers: 260nm 265nm 270nm 275nm 285nm 290nm 300nm 308nm 310nm 315nm 320nm 335nm 340nm 345nm 350nm 3500nm 360nm and other ultraviolet wavelength products

    Beam angle:60

    Size:6.8*6.8mm

  • UVC200-280NM
    Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm
    Add to cart

    Deep Ultraviolet Light Emitting diode Peak wavelength 230 nm

    Features:

    Light Source for Sterilization and Medical Application
    ▪ Lighting Color(Peak Wavelength) : 230 nm
    ▪ Surface Mount Type LED: 3.6 x 3.6 x 1.5 (L x W x H) [Unit : mm]
    ▪ Soldering Methods: Reflow Soldering

    Electro-Optical Characteristics (I F = 100 mA, T a = 25 ℃)

    Forward Voltage:6-8V;

    Radiant Flux:3MW

    Peak wavelength:225-230-235nm

    Spectrum Half Width:11NM

    Viewing Angle:TBD

    Thermal Resistance Note 2
    (Junction to Solder point):TBD

    Package:1000pcs/roll

  • UVC200-280NM

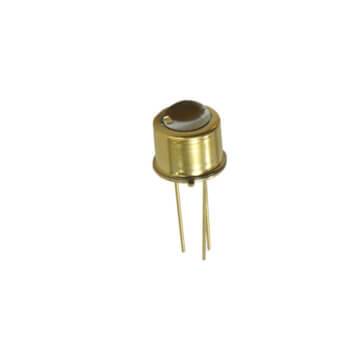

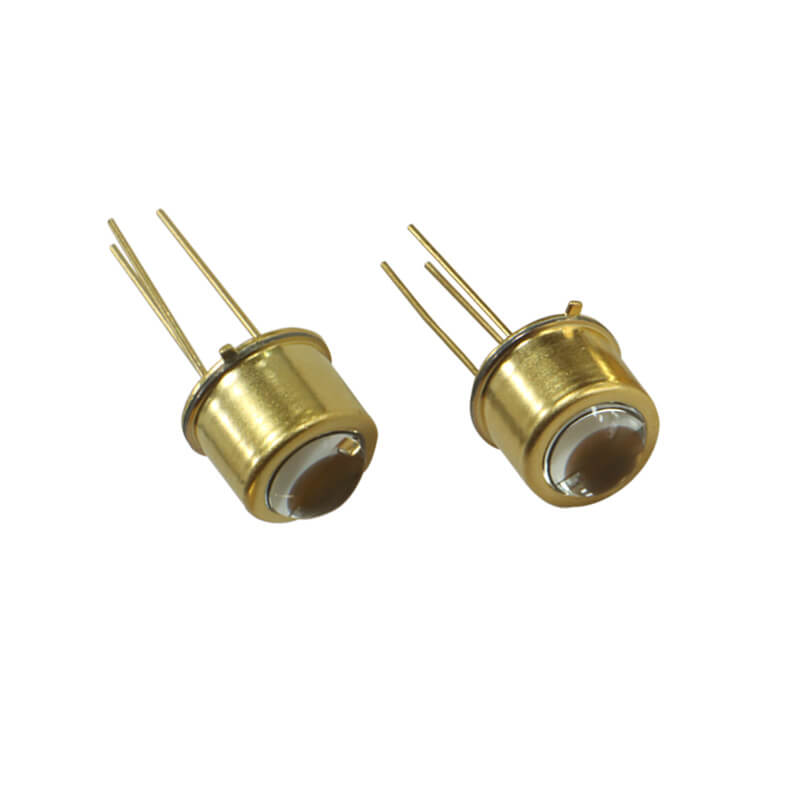

    to-39 LED 225nm 235nm 254nm 265nm 270nm 295nm 308nm DIP Lamp
    Add to cart

    to-39 LED 225nm 235nm 254nm 265nm 270nm 295nm 308nm DIP Lamp

    Specifications:

    1. Shapes: dip led
    2. Emitting color:  225-235nm/250-260NM / 260-270NM / 270-280NM / 280-290NM / 290-300NM / 300-315NM
    3. DC forward voltage (VF):  225-235nm 6-8.5V, 250-315NM 5-7V

    4. Lens : Quartz lens
    5. Life Span: 10,000 Hours
    6. With RoHS & CE Approved
    7. Beam angle: 7 degree
    8.Forward Current: 20-100ma

    9.size:30 degree:Φ9.14*8.61mm (Φ × D × H) [Unit: mm]

    (UVC 225-315NM)Applications :

    1.Air and water purification;
    2. UV detection and communication technology;
    3.Food processing and preservation, food and beverage packaging, fresh storage, etc.;
    4. medical care, dermatological treatment, etc;

  • LED UV

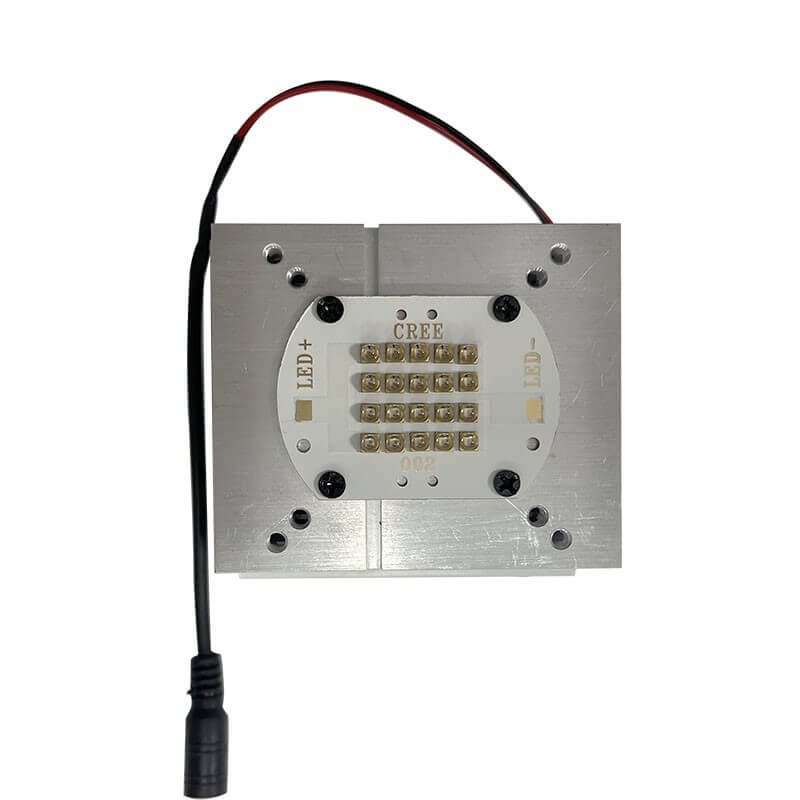

    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp
    Add to cart

    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp

    Power:30W 60W 100W

    Peak Wavelength:254nm 265nm 270nm 285nm 295nm 300nm 310nm 315nm 325nm Can be customized according to customer requirements

    Voltage:85-265V

    Light intensity:30W  300-700MW, 60W 600-1400MW, 100W 1400-2400MW;

    Applications: surface curing, detection, sterilization, sensors, medical treatment, etc.
