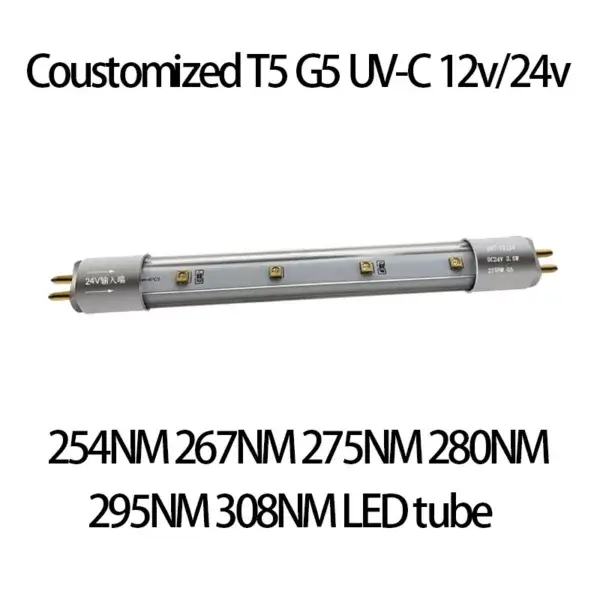

UV-C 254NM 265NM 270NM 295NM 308NM T5 G5 LED UV tube
led T5 sterilization and disinfection lamps
shell material:Aluminum + quartz glass tube
Wavelength:250-260nm/260-270nm/270-280nm/280-290nm/290-300nm/300-315nm different wavelength products can be customized according to specific requirements.
Power:3w/4w/5w/6w
usage environment:-20+50°C
led Beam angle：120°
| Item | T5-3W | T5-4W | T5-5W | T5-6W |
| Voltage(VF) | DC 12V/24V | DC 12V/24V | DC 12V/24V | DC 12V/24V |
| Radiation intensity（MW) | 20-40MW | 30-50MW | 40-70MW | 50-80MW |
| LED chip QTY(PCS) | 4 | 6 | 8 | 10 |
| Tube size(mm) | ∅15.8*135MM | ∅15.8*212MM | ∅15.8*288MM | ∅15.8*331MM |
| Lamp holder model | G5 | G5 | G5 | G5 |
| LED Wavelength(NM) | 275NM+395NM | 275NM+395NM | 275NM+395NM | 275NM+395NM |
