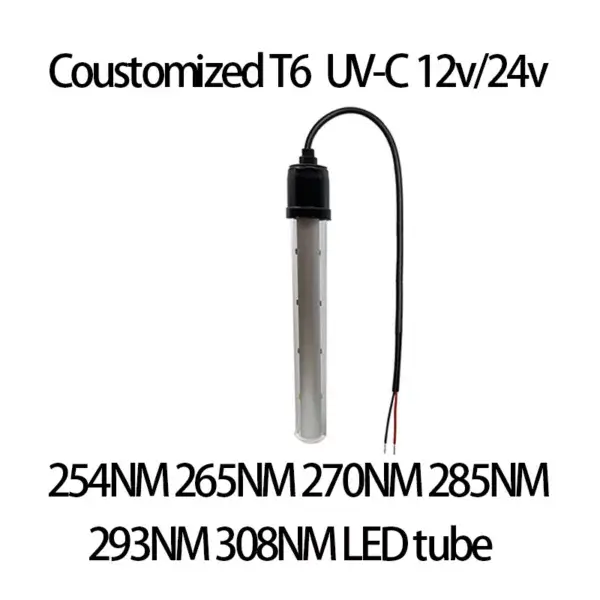

UV-C 254NM 267NM 275NM 280NM 295NM 308NM T6 IP68 LED UV tube
led T6 sterilization and disinfection lamps
shell material:Aluminum + quartz glass tube
Wavelength:250-260nm/260-270nm/270-280nm/280-290nm/290-300nm/300-315nm different wavelength products can be customized according to specific requirements.
Power:4w/6w/8w/10w
usage environment:-20+50°C
led Beam angle:120°
Item | T6-4W | T6-6W | T6-8W | T6-10W |
Voltage(VF) | DC 12V/24V | DC 12V/24V | DC 12V/24V | DC 12V/24V |
Radiation intensity(MW) | 40-70MW | 60-100MW | 80-150MW | 100-160MW |
LED chip QTY(PCS) | 8 | 12 | 16 | 20 |
Tube size(mm) | ∅19*150MM | ∅19*230MM | ∅19*310MM | ∅19*350MM |
Lamp holder model | T6 | T6 | T6 | T6 |
LED Wavelength(NM) | 275NM+395NM | 275NM+395NM | 275NM+395NM | 275NM+395NM |
