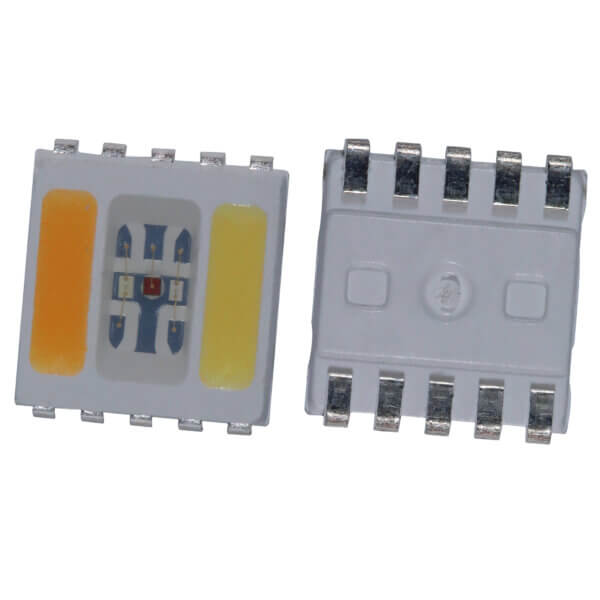

led 5054rgb+White+Amber CRI90 for Kitchen Cabinet Light Strip

led 5054rgb+White+Amber CRI90 for Kitchen Cabinet Light Strip

Power dissipation:0.2w*5

Forward current:(20-60mA)*5

Reverse voltage:5V

Operating temperature range:-40~+85℃

Storage temperature range:40~+100℃

Peak pulsing current:60mA

Electrostatic Discharge:2000V

Forward voltage:R:1.8-2.4v,blue,green,white,amber:2.8-3.4V

Luminous intensity:R:500-700MCD,B:300-500MCD,G:1500-2300MCD,White:18-20LM,Amber:16-18LM

Viewing angle:120Deg

Size:5.3mm×5.0mm×1.60mm SMT-LED

Dominant wavelength:Red:620-630nm, Blue:450-470nm,Green:520-530nm,white:6000-6500K,Amber:1800-2300K

Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

led 5054rgb+White+Amber CRI90 for Kitchen Cabinet Light Strip

Power dissipation:0.2w*5

Forward current:(20-60mA)*5

Reverse voltage:5V

Operating temperature range:-40~+85℃

Storage temperature range:40~+100℃

Peak pulsing current:60mA

Electrostatic Discharge:2000V

Forward voltage:R:1.8-2.4v,blue,green,white,amber:2.8-3.4V

Luminous intensity:R:500-700MCD,B:300-500MCD,G:1500-2300MCD,White:18-20LM,Amber:16-18LM

Viewing angle:120Deg

Size:5.3mm×5.0mm×1.60mm SMT-LED

Dominant wavelength:Red:620-630nm, Blue:450-470nm,Green:520-530nm,white:6000-6500K,Amber:1800-2300K
