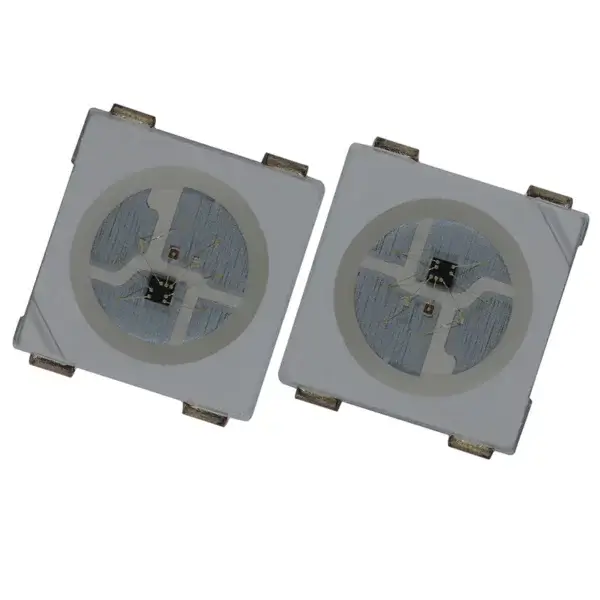

5050 WS2812 + RGB LED SMD chip diode

5050 WS2812 + RGB LED SMD chip diode

Feature description Power

  • input voltage: 3.5-7.5V OUT R/G/B
  • Constant current value: 12mA Top SMD
  • internally integrates high-quality external control single-wire serial cascaded constant current IC
  • The control circuit and chip are integrated in the SMD 5050 components to form a complete external

control pixel, and the color temperature effect is uniform and consistent high

  • Built-in data shaping circuit, after any pixel receives the signal, it will be output after waveform shaping to ensure that the

line waveform distortion will not accumulate

  • By default, the light is off after power-on
  • Gray scale adjustment circuit (256 levels of gray scale adjustable)
  • Data shaping: After receiving the data of this unit, the subsequent data will be shaped and output automatically
  • Built-in high-precision and high-stability oscillator.
  • Single-line data transmission, unlimited cascading
  • High data protocol compatibility
  • Data transmission rate: 800Kbps



Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

5050 WS2812 + RGB LED SMD chip diode

Feature description Power

  • input voltage: 3.5-7.5V OUT R/G/B
  • Constant current value: 12mA Top SMD
  • internally integrates high-quality external control single-wire serial cascaded constant current IC
  • The control circuit and chip are integrated in the SMD 5050 components to form a complete external

control pixel, and the color temperature effect is uniform and consistent high

  • Built-in data shaping circuit, after any pixel receives the signal, it will be output after waveform shaping to ensure that the

line waveform distortion will not accumulate

  • By default, the light is off after power-on
  • Gray scale adjustment circuit (256 levels of gray scale adjustable)
  • Data shaping: After receiving the data of this unit, the subsequent data will be shaped and output automatically
  • Built-in high-precision and high-stability oscillator.
  • Single-line data transmission, unlimited cascading
  • High data protocol compatibility
  • Data transmission rate: 800Kbps

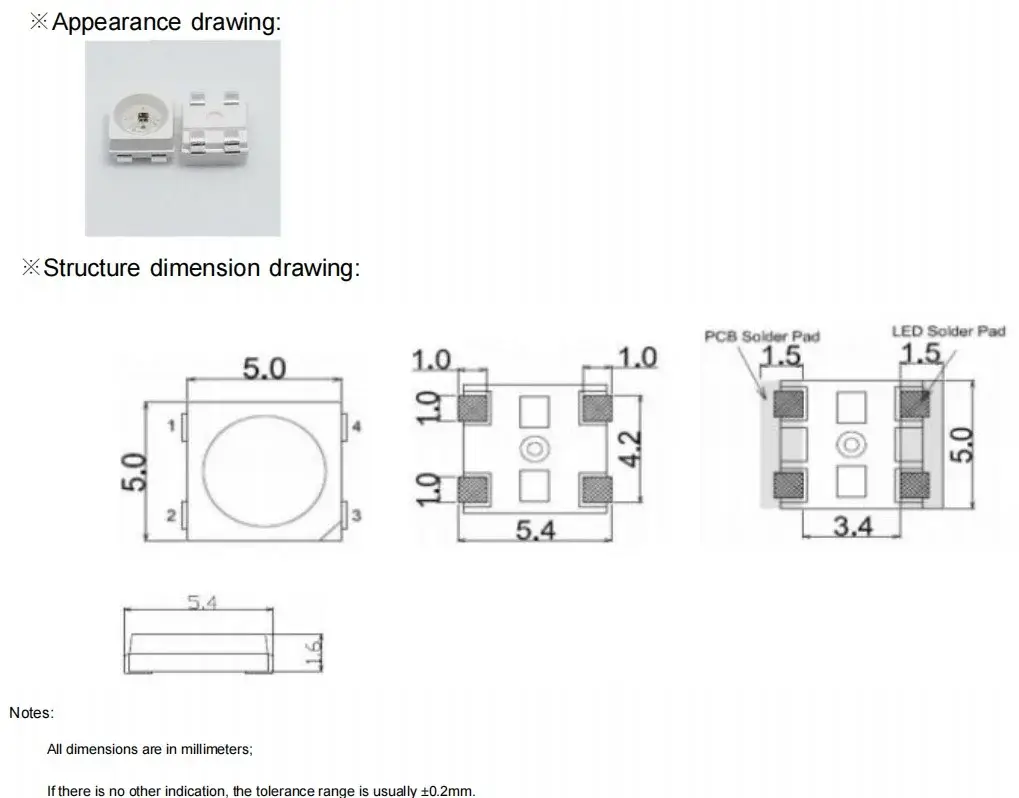

5050 WS2812 RGB LED SMD chip jpg
