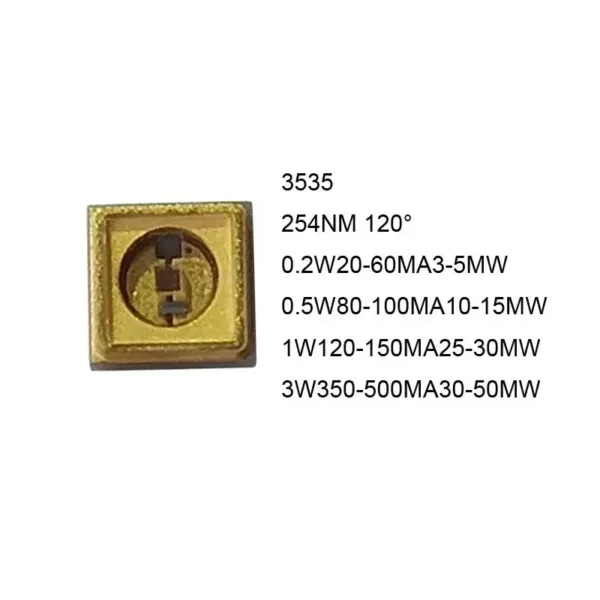

0.2W 0.5W 1W 3W 5W 250NM 253.7NM 258NM 254NM LED 3535 SMD UVC chip for Medical phototherapy
Specifications:
1. Shapes: UV-C LED SMD chip
2.Wavelength: 250-260NM
3. Forward voltage (VF): 5-7V
4. Lens : Quartz lens
5. Life Span: 10,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 120 degree
8.Package:3535
9.Power:0.2W/0.5W/2.4V/3W/5W/12W
10.Radiation intensity:0.2W 3-7MW/0.5W 10-18MW/1W 20-30MW/3W 30-50MW/5W 70-90M
11.Current:0.2W 40MA,0.5W 100MA, 1W 150MA, 3W 350-500MA, 5W 500-700MA
Applications :
1. Surface sterilization: medical appliances, maternal and infant supplies, smart toilet, refrigerator,
tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticket
machine buttons and other high-frequency public contact surfaces;
2. Still Water Sterilization: Drinking Water tank,humidifier, ice machine;
3.Mobile Water Sterilization: Mobile Water Sterilization Module, Direct Drinking Water Machine;
4. Air Sterilization: Air Purifier, air conditioning;
5.Industrial Applications: Medical phototherapy,fluorescence spectrum detection, optical sensors,
biological analysis/detection, anti-counterfeit detection, etc.
