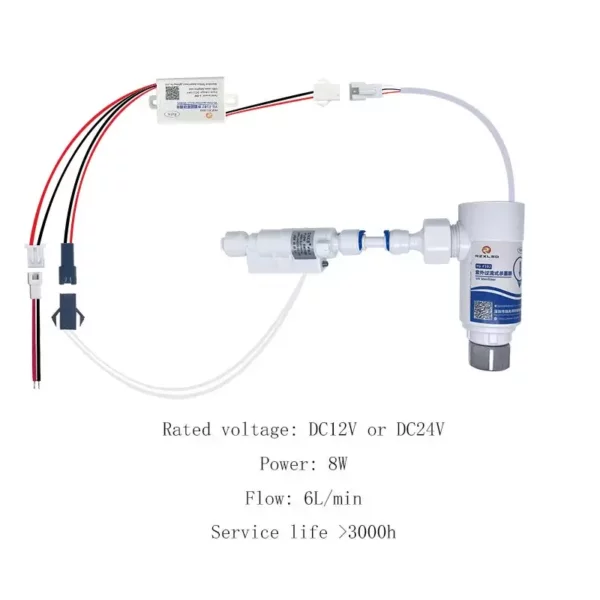

LED 12-24V 8W 254nm 270nm 265nm 280nm Mobile Water Sterilization Module

Power:8W

LED 12-24V 8W 254nm 270nm 265nm 280nm Mobile Water Sterilization Module

Wavelength:250-260nm/260-270nm/270-280nm

Voltage:12-24V

Applications:Mobile Water Sterilization: Mobile Water S
terilization Module, Direct Drinking Water Machine;

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

Product Description

LED 12-24V 8W 254nm 270nm 265nm 280nm Mobile Water Sterilization Module

1.DC 12V~24V (sterilization module power 6~8W) It’s recommended that
the power supply 2-3 times higher than module.
2.The line sequence of the power interface is: red anode and black
cathode (the red wire is connected to the positive electrode, and the
black wire is connected to the negative electrode. Forbidden to
reverse )
3.Water flow sw itch interface: the water flow switch accessories must
be connected to work normally. Or short-circuit this port as well
works normally.
4.The sterilizer can be powered on only after the sterilizer interface
marked on the icon is connected.
5.The module cannot be dry-burned and it can be energized for a long
time after the water circulated normally.
6.It’s strictly forbidden test for a long time when there is no water flow
with power. The electrical test time should not exceed 30 seconds.

Overflow terminal sterilization module can work well in RO watre filter sstems and thes ,in the condition of nottesting sterilization capacity against Cryptomycota species and Candida auris or Aspergillus species. all other microbes can be inactivated and not grow any more, so it is better to install them on the inlet and outlet of water filter systems, so that filters can be used longer wirthout contamination, even if contaminated on the filter material, the oultet drinking watre still is 100 % safe.

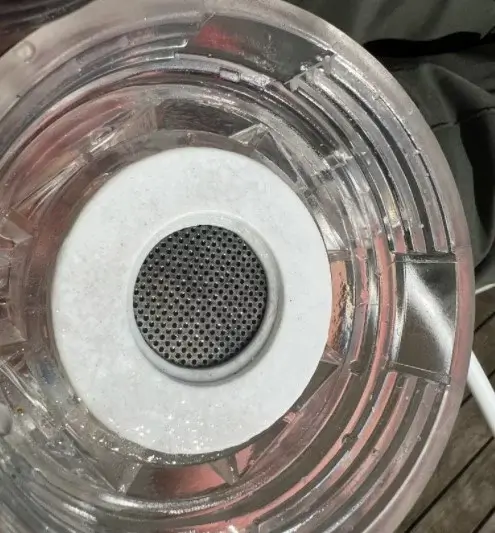

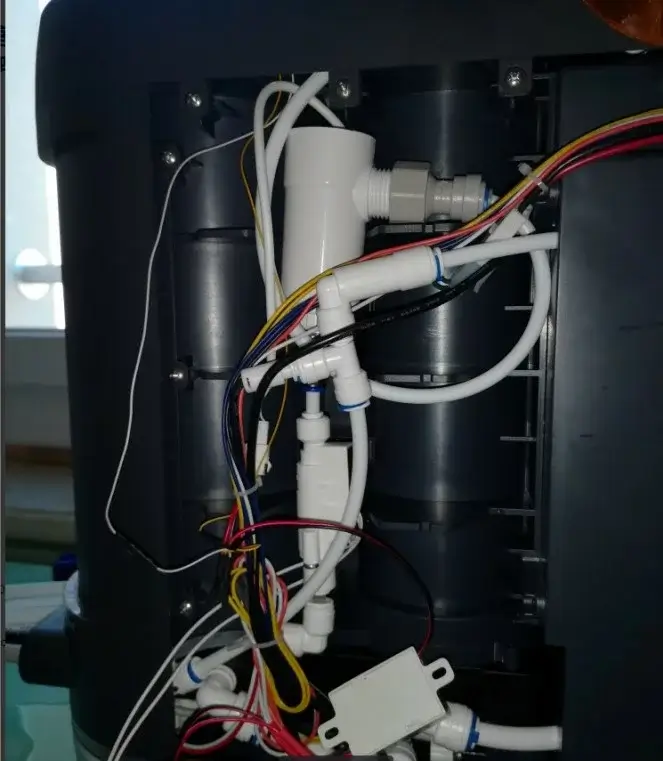

F102 water sterilization UV module jpg F102 water sterilization UV module 1 jpg
