Product

  • UVC200-280NM.LED
    led torch bi color uvc254NM with uvb 305nm led uv flashlight
    Add to cart

    led torch bi color uvc254NM with uvb 305nm led uv flashlight

    product description: ​Brand: GZYSLED ​Light bulb:  254NM+305NM UV LED torch
    ​Power (W): 3W+3W ​Material: Aluminum Alloy ​Lighting time: 1 hours ​Dimensions: 129mm (length) x 32mm(head) x 27mm (Tail) ​Weight: 200g ​Product Color: Black ​package: UV flashlight, usb cable ​
    Package included: 1x LED UV flashlight ​1x USB cable ​1 x Box ​
  • 1206
    reverse mount 1204 package cold white 3216 smd
    Add to cart

    reverse mount 1204 package cold white 3216 smd package :2000pcs/roll 1204 package with reverse mount and versatile design capabilities. It is a PCB type molding style LED which can be used in various applications.
    Applications:Consumer Electronics ,Wearables ,Automobile After Market ,Industrial Equipment.

  • COB Integrated Light Source 3-500W

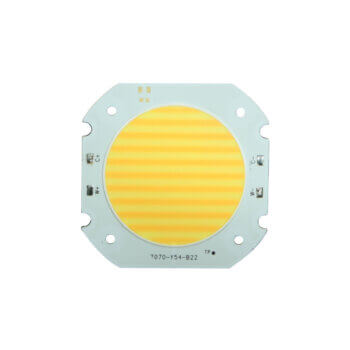

    COB LED 7070 Bi Color Ra95 72V 2700K and 6500K with Heat Sink
    Add to cart

    COB LED 7070 Bi Color Ra95 72V 2700K and 6500K with Heat Sink

    Mechanical Dimensions:70mm× 70mm× 3.1mm  ,

    Shiny surface:54mm

    CRI:95+

    Bi color: 2700K+6500K

    DC Voltage:68-76V

    2700K:40000-45000LM

    6500:50000-55000LM

    LED Junction Temperature (T j ):150℃

    Operating Case Temperature1 (Tc):85°C

    Soldering Temperature:350°C or lower for a maximum of 6 seconds

    Electrostatic Discharge (HBM):2000V

    Maximum Drive Current:6900mAx2

  • 5MM
    dip led diffused 5mm red yellow blue green white led light emitting diode
    Add to cart

    dip led diffused 5mm red yellow blue green white led light emitting diode

    size:5MM

    leg :19-17MM

    Operating Temperature Range:-40°C to + 85°C

    Reverse Current:10 μA

    Reflow Soldering Condition:260°C for 10 Seconds Max

    1. Features
    ◼ High Luminous intensity output.
    ◼ Low power consumption & High efficiency.
    ◼ Superior resistance to moisture
    ◼ Lead free & Halogen free & RoHS Compliant

    2. Applications
    ◼ Video message sign
    ◼ Traffic sign
    ◼ Message sign

  • infrared led/IRM laser diode
    660nm 450nm 850nm 830nm 460nm led infrared photon facial mask device
    Add to cart

    660nm 450nm 850nm 830nm 460nm led infrared photon facial mask device

    neips SKIII Cdie.ihe LED ugiL metei Cdl ve useu ds d CUlagen IIdSK LO heip dUSUIDutrients in skin care products faster and better,making the skin delicate,white,plumpand elastic.
    2.Suitable for oily skin:Very suitable for oily skin and skin,improving oil balance.Iteduces acne.Reduce oil secretion,make facial skin more balanced,help maintain skinealth,and regulate oily skin.

    Rated voltage 3.7V Charging voltage 5V
    Power 3.2W Charging current 560mA
  • infrared led/IRM laser diode
    InfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led
    Add to cart

    InfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led

    Forward voltage:1.2-1.5V

    Reverse current:10μA

    Radiant intensity@20MA:15-48mW/sr

    Spectral band width:40NM

    Peak wavelength:940NM

    Viewing Angle:20deg

    Forward Current:100mA

    Peck forward current:1A

    Reverse Voltage:5V

    Power Dissipation:150MW

    Operation temperature:-25 to +80℃

    Storage temperature:-35 to +85 ℃

    Soldering temperature:260 ℃Wave soldering, 3mm out of physical body, ≤3S

    Notes*1: IFP Conditions-Pulse Width≤100μs and Duty≤1%



  • 5MM
    LED pth round 5mm 2v red difuse 620-630nm dip led lamp
    Add to cart

    LED pth round 5mm 2v red difuse 620-630nm dip led lamp

    Working current: 20 (mA)
    Item number: 5mm round head with short legs and  red color
    Working voltage: 1.8-2.2 (V)
    Power: 0.06 (W)
    Brand: GZYSLED
    Dimensions: 5 (mm)
    Model: 5mm round head with short legs and color
    Thermal resistance: ≤5 (°/W)
    Luminous angle: 30 (°)
    Luminous efficiency: 200-800mcd
    Chip brand: Taiwan

  • infrared led/IRM laser diode
    dip led 5.0mm through hole package 850nm Black colloid emission tube
    Add to cart

    dip led 5.0mm through hole package 850nm Black colloid emission tube

    Forward Voltage:1.4 -.8 V
    Forward Current:100mA
    Test Temperature:25℃
    Luminous Intensity:200-600mw  @100mA
    Wavelength WL :840 850 860 nm ±2nm
    Lighting Angle Emission Angle :10 deg
    Reverse Current IR:5 μA

    Reverse voltage Vr: 5 V
    Operating temperature Topr: -30~+85 ℃
    Storage temperature Tstg: -40~+85 ℃
    Soldering temperature Tsol: 260±5℃(for4sec) ℃
    Power consumption Pd: 150 mW
    Pulse current IFP: 1000 mA

    Applications:
    Remote control
    Infrared photoelectric switch
    Smoke detector
    Smart appliances
    Locker sensor
    Infrared applied system
    Touch switch

  • 3030
    3030 emc uva led 365nm 395nm smd diode
    Add to cart

    3030 emc uva led 365nm 395nm smd diode

    Chip type: 365nm vertical chip, 395nm Chip type: horizontal chip
    Lighting angle: flat 120°
    365-370NM :160-180mW@100mA, 395-400NM 120mW@100mA

    Support surface mount technology (SMT)
    Size: 3.0mm×3.0mm×0.9mm
    Forward voltage VF: 3.6 -4.0V
    DC forward Current IF :150 mA
    Reverse voltage:5V
    Light emitting angle 2θ :120 °
    Thermal :5 °C /W
    resistance electrostatic protection(HBM) ESD :2000V
    Junction temperature Tj:115℃

  • LED UV
    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp
    Add to cart

    led 30W 60W 100W UV-C 254nm 265nm 275nm 290nm 308nm 315nm 320nm lamp

    Power:30W 60W 100W

    Peak Wavelength:254nm 265nm 270nm 285nm 295nm 300nm 310nm 315nm 325nm Can be customized according to customer requirements

    Voltage:85-265V

    Light intensity:30W  300-700MW, 60W 600-1400MW, 100W 1400-2400MW;

    Applications: surface curing, detection, sterilization, sensors, medical treatment, etc.

  • infrared led/IRM laser diode

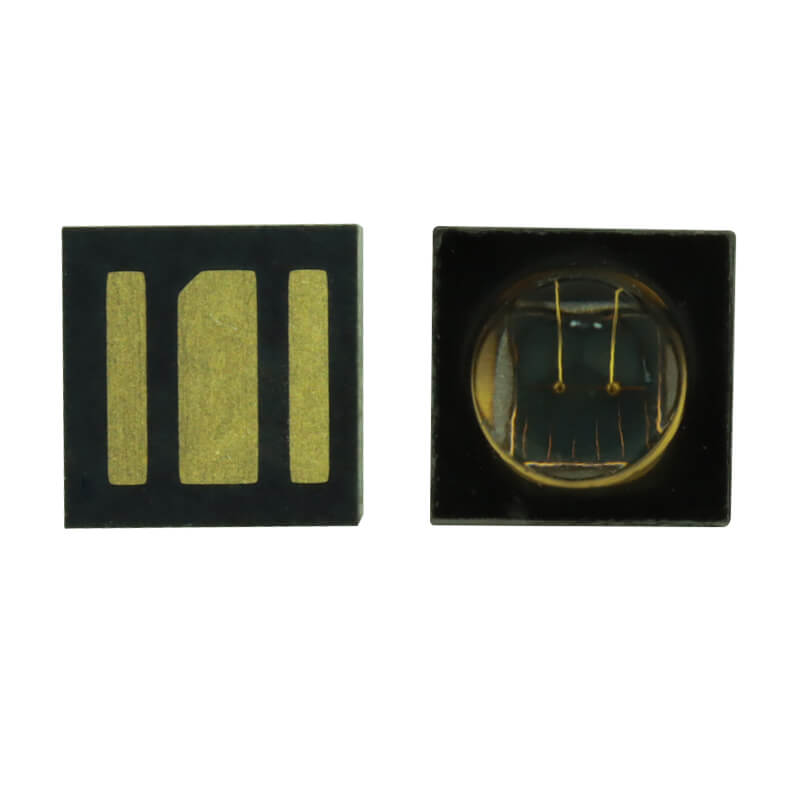

    LED infrared 940NM 90-Degree Emitting 3V 1A Emitter in 3535 Ceramic Package diode
    Add to cart

    LED infrared 940NM 90-Degree Emitting 3V 1A Emitter in 3535 Ceramic Package diode

    This emitter is packaged in a 3535 ceramic package. It emits infrared light at a wavelength of 940NM with a 90 – degree emission angle. It operates at a voltage of 3V and a rated current of 1A. It is mainly used in security monitoring, infrared remote control, biometric identification and other fields, effectively emitting infrared light signals to meet the requirements of various scenarios.

    Optical Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Emission wavelength λp     935     940      945 nm
    Spectral half – width Δλ    40 nm
    Luminous intensity Iv    450    500      580 mW/sr Measured at 350mA current
    Forward radiant intensity Ivf   500 mW/sr Axial direction, 350mA current

    3.2 Electrical Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Forward voltage Vf    2.8     3.0       3.2 V 1A operating current, 25°C ambient temperature
    Reverse current Ir        10 μA 5V reverse voltage, 25°C ambient temperature
    Junction capacitance Cj      20 pF 1MHz test frequency, 0V bias voltage

    3.3 Thermal Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Thermal resistance Rth(j – a) 5 °C/W Thermal resistance from junction to ambient
    Operating junction temperature Tj     -20      65 °C Junction temperature range during normal operation
    Storage temperature Tstg     -40      85 °C Temperature range for product storage

    3.4 Mechanical Characteristics

    Characteristic Symbol Dimension Unit Remarks
    Package size Length × Width × Height      3.5×3.5×2.4 mm Tolerance ±0.1mm
    Emission angle θ1/2       90 ° Half – intensity angle
    Lead material Gold Thread Tin – plated surface

    4. Absolute Maximum Ratings

    Parameter Symbol Value Unit Remarks
    Forward current IF 1 A Maximum continuous operating current. Exceeding this value may damage the device.
    Reverse voltage VR 5 V Maximum limit of reverse voltage applied.
    Power dissipation Pd 3 W Determined by operating voltage and current. Exceeding this value will affect performance and lifespan.
    Soldering temperature (10s) Tsoldering 260 °C Upper limit of lead temperature during soldering.

    5. Recommended Operating Conditions

    Parameter Symbol Value Unit Remarks
    Forward operating current IF 1 A Recommended normal operating current.
    Forward operating voltage Vf 3 V Voltage corresponding to 1A operating current.
    Operating ambient temperature Ta
  • 8MM
    8mm round pink LED lamp
    Add to cart

    8mm round pink LED lamp

    Absolute Maximum Ratings at Ta=25℃
    Parameter Symbol Rating Unit
    Forward Current IF: 30 mA
    Operating Temperature Topr :-40 to +85 ℃
    Storage Temperature Tstg :-40 to +85 ℃
    Soldering Temperature*1 Tsol :260±5 ℃
    Power Dissipation Pd :100 mW
    Reverse Voltage VR :5 V
    Peak Forward Current*2 IFP: 100 mA
    ESD (Human body mode) ESD :2000 V
    *1:Soldering time ≦ 5 seconds. *2.Pulse Width≦ 100μs and Duty≦ 1%. Electrical and Optical Characteristic
    Parameter Symbol Condition Min. Typ. Max. Unit
    Forward Voltage VF IF=20 mA ∕ :2.8 3.5 V
    Reverse Current IR VR= 5 V ∕ ∕ 10 μA
    Luminous Intensity IV IF=20 mA :2000 ∕ mcd
    Viewing Angle 2θ1/2 IF=20 mA ∕ 60 ∕ deg
    Dominant Wavelength λd IF=20 mA:pink
