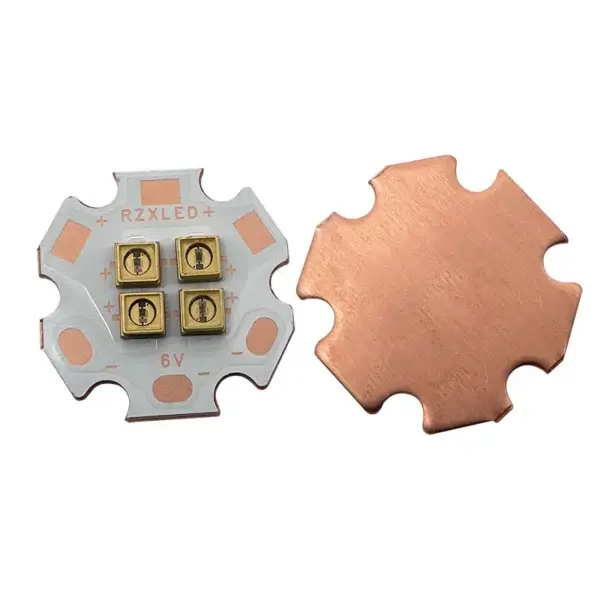

LED 6v 12W 254NM 253.7NM 263NM 270NM 285NM 290NM 315NM 308NM with 20mm star PCB
Specifications:
1. Shapes: LED Light board
2.Wavelength: 250-260NM/260-270NM/270-280NM/280-290NM/290-300NM/300-315NM
3. Forward voltage (VF): single chip 250-315NM 5-7V
4. Lens : Quartz lens
5. Life Span: 10,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 120 degree
8.Package:3535
9.Power:2.4V/4W/12W
10.Radiation intensity:0.2W 3-5MW/0.5W 10-18MW/1W 20-30MW/3W 30-70MW/5W 70-120M/12W 120-280MW
PCB size:20*20mm
(UVC 250-315NM)Applications :
1. Surface sterilization: medical appliances, maternal and infant supplies, smart toilet, refrigerator,
tableware cabinet, fresh-keeping box, smart trash can, Thermos Cup, escalator, hand and ticket
machine buttons and other high-frequency public contact surfaces;
2. Still Water Sterilization: Drinking Water tank,humidifier, ice machine;
3.Mobile Water Sterilization: Mobile Water Sterilization Module, Direct Drinking Water Machine;
4. Air Sterilization: Air Purifier, air conditioning;
5.Industrial Applications: Medical phototherapy,fluorescence spectrum detection, optical sensors,
biological analysis/detection, anti-counterfeit detection, etc.
