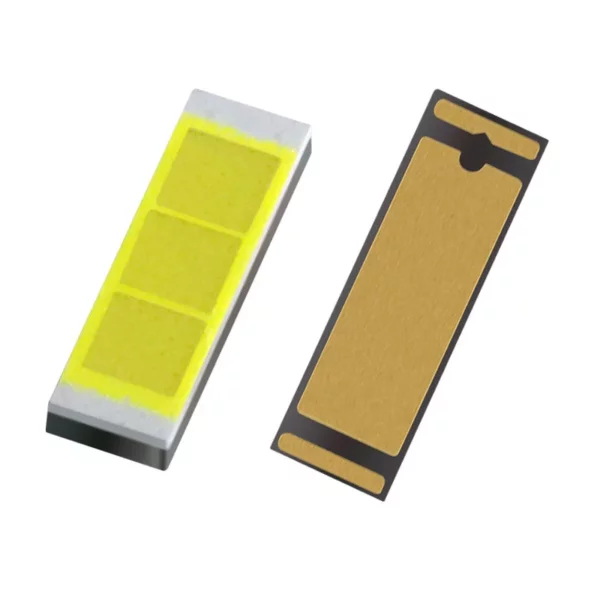

LED 5W7W9W10W12W15W 9-12V High Power White 6500K 7000K CSP 1860 SMD Chips For electric vehicles
luminous diameter:6.0*1.8*0.8MM/ 1.8*4.0*0.8MM
the use of voltage: 6W 1840 2chips is 6V, 9W/12W 1860 3chips 8.5-10.5V , 15W 1860 4chips 9-12V
use current:6W 700MA/ 9W 700ma/ 12W 1000MA/ 15W 1500MA
Power:6W/9W / 12W/15W
color classification:white 5500-7000K,
luminous angle:surface luminous
product brightness:6W 600-800LM/ 9W 800-1000LM/ 12W 1200-1500LM/15W 1800-2200LM
range of application:Car Headlight
Note:not waterproof,not more than load,cooling temperature is not higher than sixty degrees
There are thousands of modules so we can’t list all in our store.
Please contact us for check if you can’t find in the store.
Thank you!
Package included:3000PCS/Roll
