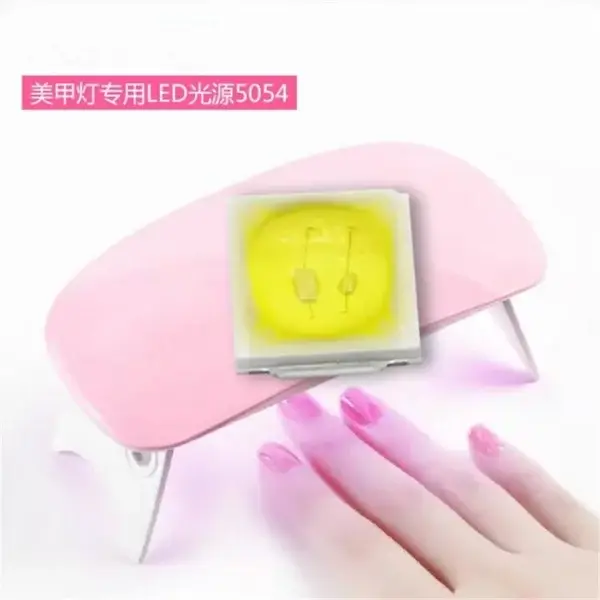

LED 3V 6V 5054 SMD chip Tri-Color 365nm with 395nm for Nail Curing lamp UV Diode
5054 UV High Efficiency( 1W 3V/6V)
|
Dimension |
5.4*5.0*1.03mm |
|
Power Consumption |
1W |
|
Peak Wavelength(NM) |
Tri-Color(365+395NM) |
|
Flux(LM) |
260-350mw/sr |
|
Forward Voltage (V) |
3-3.8V/6-7V |
|
Current |
3V 200-350mA/ 6V 150mA |
|
Application |
Nail Curing UV lamp |
The dual-wavelength UV SMD lamp bead is a kind of ultraviolet light-emitting diode with two different wavelengths. Among them, ultraviolet rays with a wavelength of 365nm are called UVA (ultraviolet A), and ultraviolet rays with a wavelength of 395nm are called UVB (ultraviolet B).
The function of dual-wavelength UV SMD lamp beads is to generate ultraviolet radiation. Ultraviolet light has a shorter wavelength, can penetrate air and transparent substances, and has the functions of sterilization, disinfection, and curing. Among them, UVA is mainly used in fields such as curing, exposure of photosensitive materials, and fluorescence detection; UVB is mainly used in fields such as sterilization, disinfection, and ultraviolet therapy.
The application fields of dual-wavelength ultraviolet patch lamp beads include but are not limited to the following aspects:
1. Industrial field: used for curing photosensitive adhesive, photosensitive ink and other materials, such as printing, coating, electronic manufacturing and other industries.
2. Medical field: for ultraviolet therapy, such as the treatment of skin diseases, vitiligo and so on.
3. In the field of biological sciences: for laboratory research such as fluorescence detection, cell culture, and DNA analysis.
4. Disinfection field: used for air purification, water treatment, food processing and other environmental disinfection.
5. Household field: used for household disinfection products such as air purifiers and faucet filters.
It should be noted that ultraviolet rays have certain radiation and hazards. When using them, you need to follow the relevant safety operation regulations and avoid direct exposure to the human body and eyes.
