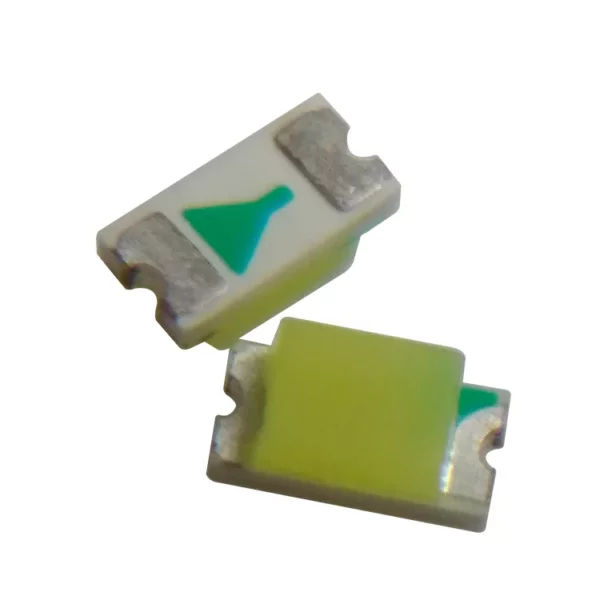

led 1608 red yellow blue green white purple pink ice blue 1615rgb 0603 led chip
luminous diameter:1.6*0.8*0.55mm
Forward Voltage:red/yellow/orange:1.8-2.4V, white/blue/green/pink/purple:3-3.6v
Forward current:15-20ma
Power:0.06w
Chromaticity Coordinates:
Color Temperation:white:8000-10000K ,blue:450-470nm,green:520-530nm,red:620-630nm,yellow:588-595nm,orange:600-610nm,pink,Yellowgreen565-575nm
Viewing Angle:120
luminous flux:white:350-500mcd
Optical Attenua:0.05
storage tempe:-20-40
operating tem:-20-40
packing:4000pcs/roll
Packaging Details:reel and tape in carton
SMD LED 0603 0.06W 15-20mA
LED 1608 is a SMD LED lamp bead with a size of 1.6mm x 0.8mm. It is available in a variety of colors including red, yellow, blue, green and white. In addition, it also has RGB (red, green and blue) three primary color versions, as well as purple 395nm, infrared 850nm and 940nm versions.
LED 1608 lamp beads are widely used in various fields, including but not limited to the following aspects:
1. Lighting: LED 1608 lamp beads can be used for indoor and outdoor lighting, such as backlight, indicator lights, decorative lights, etc. LEDs of different colors can create different lighting effects.
2. Electronic products: Due to its small size and low power consumption, LED 1608 lamp beads are often used in electronic products, such as mobile phones, tablet computers, TVs, etc. They can be used as indicator lights, backlights or displays.
3. Automotive industry: LED 1608 lamp beads are widely used in the automotive industry, such as car lights, dashboard lights, brake lights, etc. They are characterized by high brightness and fast response, improving driving safety.
4. Communication: LED 1608 lamp beads can be used as light sources and indicators in optical communication systems. LEDs with different wavelengths can be used for different communication requirements, for example, purple light 395nm can be used for optical fiber communication, and infrared light 850nm and 940nm can be used for infrared communication.
5. Medical: The infrared 850nm and 940nm versions of LED 1608 lamp beads are widely used in the medical field. They can be used in medical devices such as phototherapy, optical imaging, biosensors, etc.
In a word, LED 1608 lamp beads have a variety of colors and wavelengths to choose from, which are suitable for different application fields. They play an important role in fields such as lighting, electronics, the automotive industry, communications and medical care.
