infrared led/IRM laser diode

  • 3535
    5W infrared 840NM 850NM 855NM 940NM 950NM 945NM led IR SMD
    Add to cart

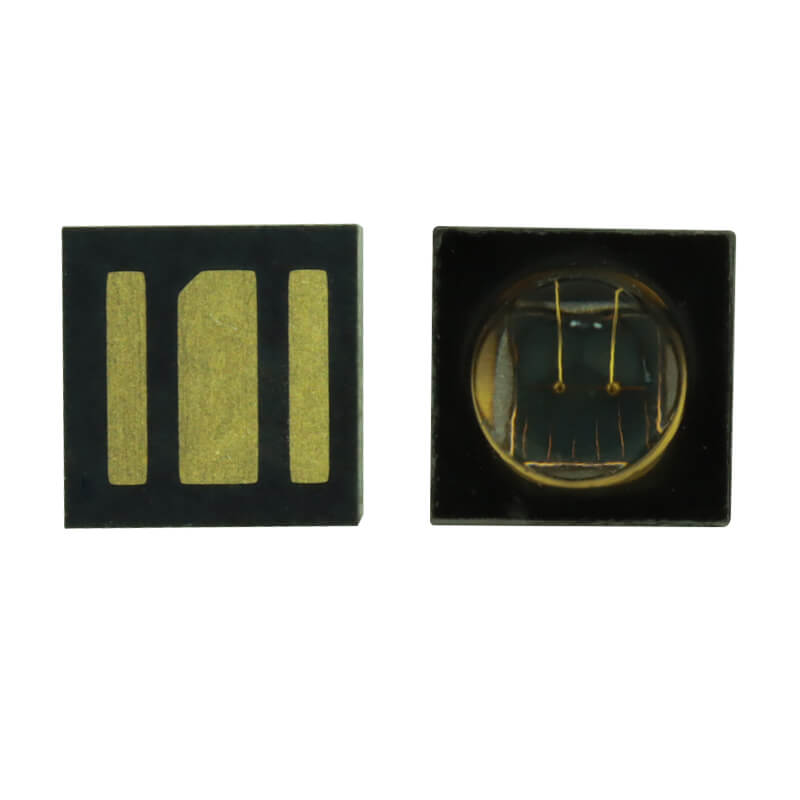

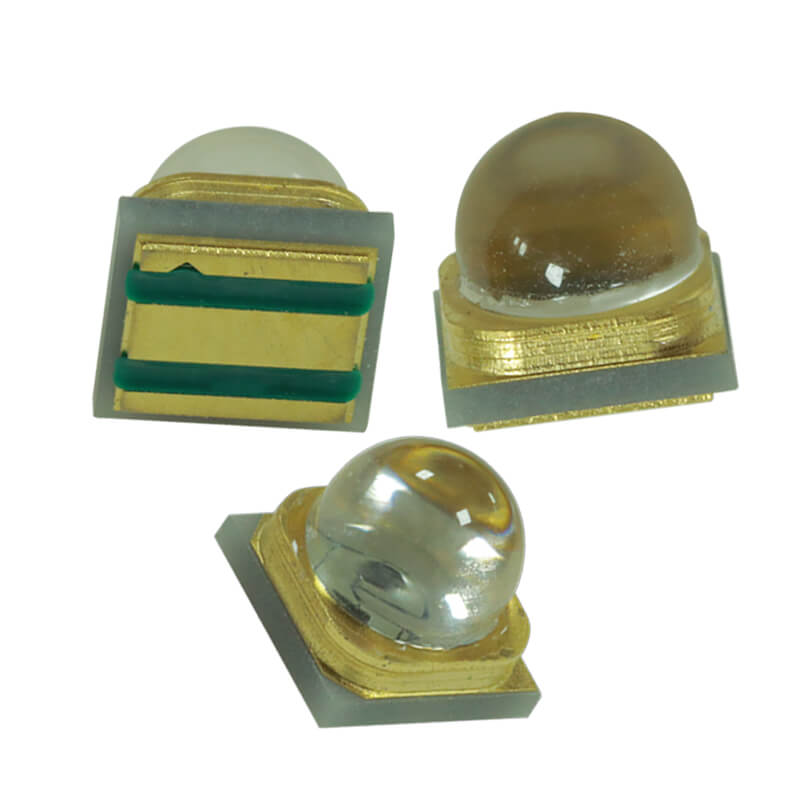

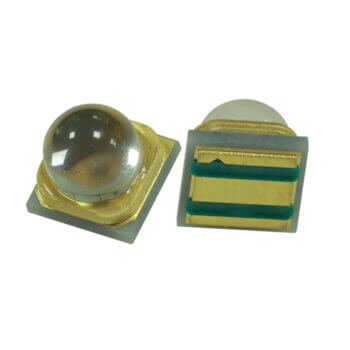

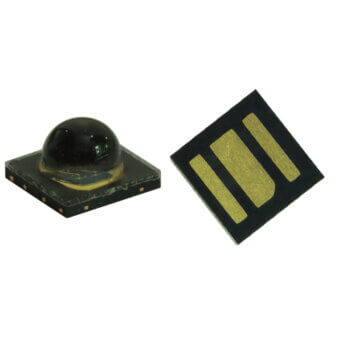

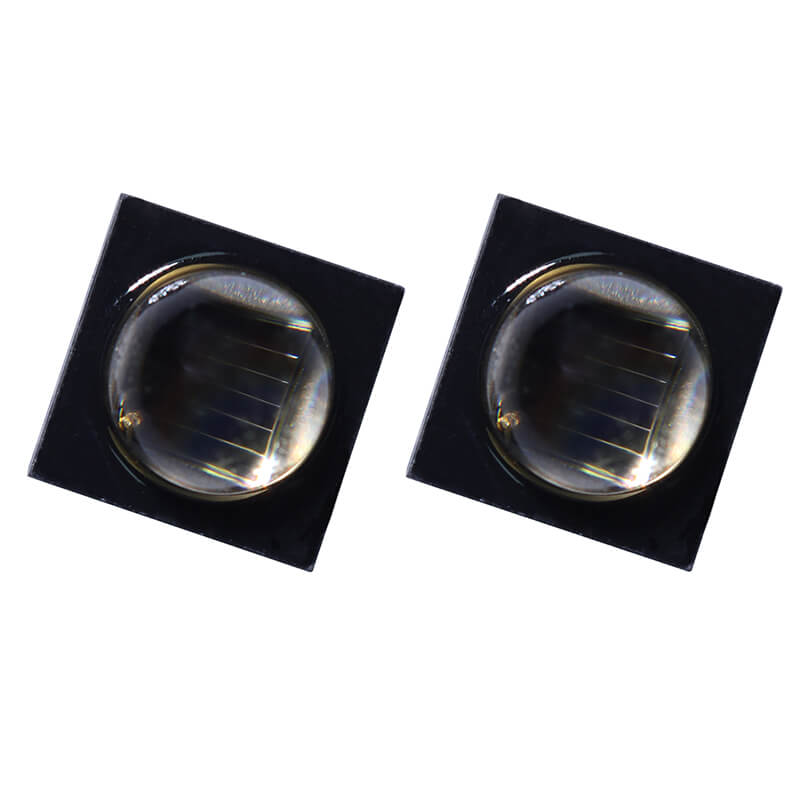

    5W infrared 840NM 850NM 855NM 940NM 950NM 945NM led IR SMD

    Type Power(W) Wavelength(NM) Size(mm)
    led 5W IR 840-860nm/940-955nm Diode 5W 840-860NM/940-955NM 3.8*3.8mm
  • infrared led/IRM laser diode
    3535 led 630nm 610nm 590nm 520nm 460nm 660nm 810nm 830nm 850nm for medical Phototherapy lamp
    Add to cart

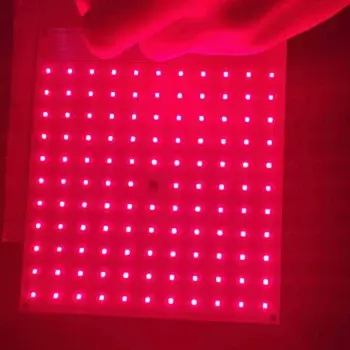

    3535 led 630nm 610nm 590nm 520nm 460nm 660nm 810nm 830nm 850nm for medical Phototherapy lamp

    led light source:3535 ceramic bracket

    PCB:Aluminum or copper substrates can be Aluminum or copper substrates can be customized according to customer requirements

    Power:Aluminum or copper substrates can be customized according to customer requirements

    Wavelength:

    590nm :Soothes, brightens and reduces dark spots

    610nm :Replenish energy and improve relaxation

    630nm:Skin rejuvenation, anti-wrinkle, stimulate collagen

    520nm:Balance water and oil, reduce grease

    460nm:Control oil, remove acne, balance oil

    660nm:660nm helps cell metabolism, increases blood circulation, accelerates wound healing and promotes plant growth.

    810nm:Adjust blood pressure

    830nm:Promote wound healing

    850nm:850nm is suitable for applications requiring deep penetration, such as skin tissue therapy and deep muscle pain relief.





  • infrared led/IRM laser diode

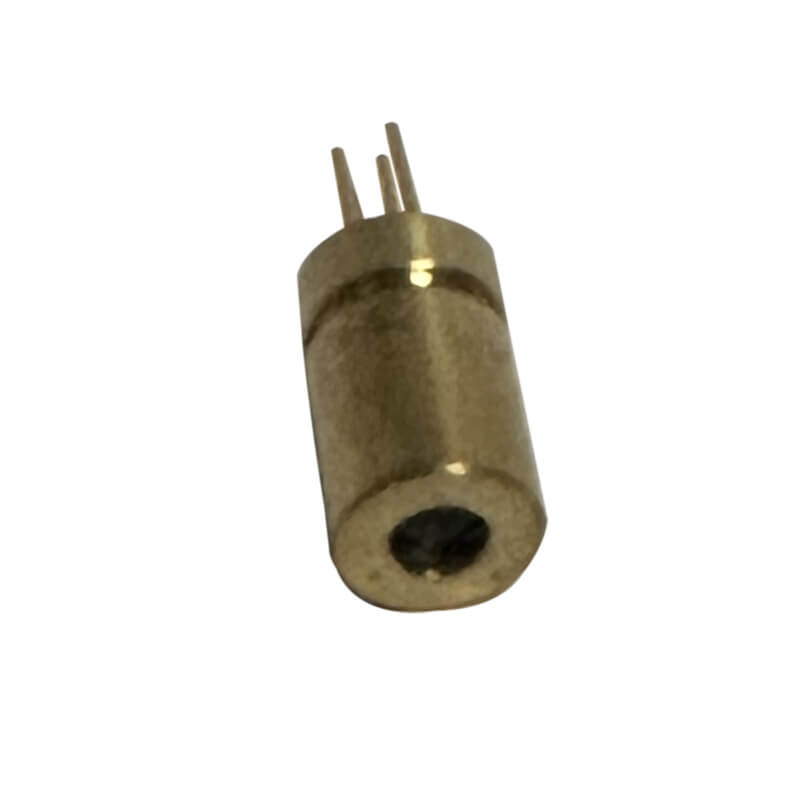

    red infrared laser with enclosed lens dip diode
    Add to cart

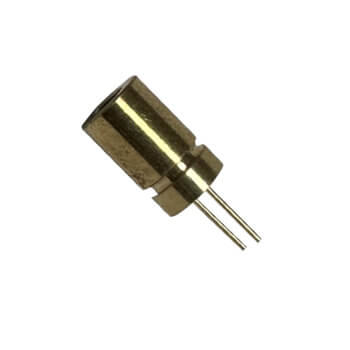

    red infrared laser with enclosed lens dip diode

    Red Laser wavelength:635nm 650nm 670nm 680nm

    Infrared:780nm 808nm 820nm 830nm 840nm 850nm 905nm 940nm

    red laser Application:Laser Pointer, Bar Code Scanner, Medical.

    Features:

    – Red Laser

    – CW laser (Continuous Wave)

    – Single Transvers / TE mode laser

    – 5.6mm Package

    package:To-18, To-9, To-5, To-can3.3mm, lead frame;

    Infrared laser Application:Medical, Industrial Optical Sensor, Sensor,Industrial optical module.

    Features

    – Infra Red Laser

    – CW laser (Continuous Wave)

    – Single Transvers / TE mode laser

    – 5.6mm Package

  • infrared led/IRM laser diode
    to-18 red laser infra red laser to-can dip diode
    Add to cart

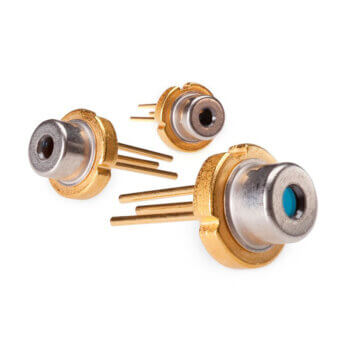

    to-18 red laser infra red laser to-can dip diode

    Red Laser wavelength:635nm 650nm 670nm 680nm

    Infrared:780nm 808nm 820nm 830nm 840nm 850nm 905nm 940nm

    red laser Application:Laser Pointer, Bar Code Scanner, Medical.

    Features:

    – Red Laser

    – CW laser (Continuous Wave)

    – Single Transvers / TE mode laser

    – 5.6mm Package

    package:To-18, To-9, To-5, To-can3.3mm, lead frame;

    Infrared laser Application:Medical, Industrial Optical Sensor, Sensor,Industrial optical module.

    Features

    – Infra Red Laser

    – CW laser (Continuous Wave)

    – Single Transvers / TE mode laser

    – 5.6mm Package

  • laser620-1350nm
    laser diode 905nm 100mW 70℃ Infrared Laser
    Add to cart

    laser diode 905nm 100mW 70℃ Infrared Laser

    Optical Output Power:100MW

    Laser Diode Reverse Voltage:2V

    Photo Diode Reverse Voltage:30V

    Operating Temperature:-10 ~ +70℃

    Storage Temperature:-40 ~ +85℃

    Threshold Current:25-50mA

    Operating Current:130-170mA

    Slope Efficiency:0.8-1.4 mW/mA

    Lasing Wavelength:895-905-915NM

    Application – Sensor – Industrial optical module

    Features

    – 905nm Infra Red Laser

    – CW laser (Continuous Wave)

    – Single Transvers / TE mode laser

    – 5.6mm Package

  • infrared led/IRM laser diode
    660nm 450nm 850nm 830nm 460nm led infrared photon facial mask device
    Add to cart

    660nm 450nm 850nm 830nm 460nm led infrared photon facial mask device

    neips SKIII Cdie.ihe LED ugiL metei Cdl ve useu ds d CUlagen IIdSK LO heip dUSUIDutrients in skin care products faster and better,making the skin delicate,white,plumpand elastic.
    2.Suitable for oily skin:Very suitable for oily skin and skin,improving oil balance.Iteduces acne.Reduce oil secretion,make facial skin more balanced,help maintain skinealth,and regulate oily skin.

    Rated voltage 3.7V Charging voltage 5V
    Power 3.2W Charging current 560mA
  • infrared led/IRM laser diode
    InfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led
    Add to cart

    InfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led

    Forward voltage:1.2-1.5V

    Reverse current:10μA

    Radiant intensity@20MA:15-48mW/sr

    Spectral band width:40NM

    Peak wavelength:940NM

    Viewing Angle:20deg

    Forward Current:100mA

    Peck forward current:1A

    Reverse Voltage:5V

    Power Dissipation:150MW

    Operation temperature:-25 to +80℃

    Storage temperature:-35 to +85 ℃

    Soldering temperature:260 ℃Wave soldering, 3mm out of physical body, ≤3S

    Notes*1: IFP Conditions-Pulse Width≤100μs and Duty≤1%



  • infrared led/IRM laser diode
    dip led 5.0mm through hole package 850nm Black colloid emission tube
    Add to cart

    dip led 5.0mm through hole package 850nm Black colloid emission tube

    Forward Voltage:1.4 -.8 V
    Forward Current:100mA
    Test Temperature:25℃
    Luminous Intensity:200-600mw  @100mA
    Wavelength WL :840 850 860 nm ±2nm
    Lighting Angle Emission Angle :10 deg
    Reverse Current IR:5 μA

    Reverse voltage Vr: 5 V
    Operating temperature Topr: -30~+85 ℃
    Storage temperature Tstg: -40~+85 ℃
    Soldering temperature Tsol: 260±5℃(for4sec) ℃
    Power consumption Pd: 150 mW
    Pulse current IFP: 1000 mA

    Applications:
    Remote control
    Infrared photoelectric switch
    Smoke detector
    Smart appliances
    Locker sensor
    Infrared applied system
    Touch switch

  • infrared led/IRM laser diode
    LED infrared 940NM 90-Degree Emitting 3V 1A Emitter in 3535 Ceramic Package diode
    Add to cart

    LED infrared 940NM 90-Degree Emitting 3V 1A Emitter in 3535 Ceramic Package diode

    This emitter is packaged in a 3535 ceramic package. It emits infrared light at a wavelength of 940NM with a 90 – degree emission angle. It operates at a voltage of 3V and a rated current of 1A. It is mainly used in security monitoring, infrared remote control, biometric identification and other fields, effectively emitting infrared light signals to meet the requirements of various scenarios.

    Optical Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Emission wavelength λp     935     940      945 nm
    Spectral half – width Δλ    40 nm
    Luminous intensity Iv    450    500      580 mW/sr Measured at 350mA current
    Forward radiant intensity Ivf   500 mW/sr Axial direction, 350mA current

    3.2 Electrical Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Forward voltage Vf    2.8     3.0       3.2 V 1A operating current, 25°C ambient temperature
    Reverse current Ir        10 μA 5V reverse voltage, 25°C ambient temperature
    Junction capacitance Cj      20 pF 1MHz test frequency, 0V bias voltage

    3.3 Thermal Characteristics

    Characteristic Symbol Minimum Typical Maximum Unit Remarks
    Thermal resistance Rth(j – a) 5 °C/W Thermal resistance from junction to ambient
    Operating junction temperature Tj     -20      65 °C Junction temperature range during normal operation
    Storage temperature Tstg     -40      85 °C Temperature range for product storage

    3.4 Mechanical Characteristics

    Characteristic Symbol Dimension Unit Remarks
    Package size Length × Width × Height      3.5×3.5×2.4 mm Tolerance ±0.1mm
    Emission angle θ1/2       90 ° Half – intensity angle
    Lead material Gold Thread Tin – plated surface

    4. Absolute Maximum Ratings

    Parameter Symbol Value Unit Remarks
    Forward current IF 1 A Maximum continuous operating current. Exceeding this value may damage the device.
    Reverse voltage VR 5 V Maximum limit of reverse voltage applied.
    Power dissipation Pd 3 W Determined by operating voltage and current. Exceeding this value will affect performance and lifespan.
    Soldering temperature (10s) Tsoldering 260 °C Upper limit of lead temperature during soldering.

    5. Recommended Operating Conditions

    Parameter Symbol Value Unit Remarks
    Forward operating current IF 1 A Recommended normal operating current.
    Forward operating voltage Vf 3 V Voltage corresponding to 1A operating current.
    Operating ambient temperature Ta
