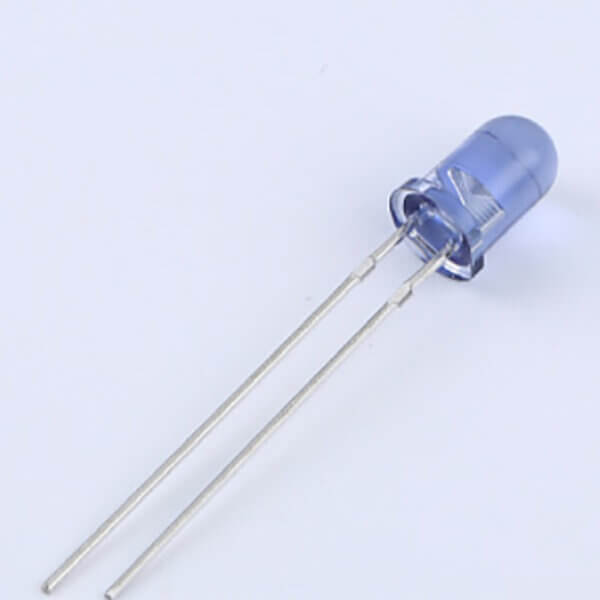

InfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led
This Infrared Emitting Diode is a high intensity diode, molded in a Blue plastic package.
The device is spectrally matched with phototransistor, photodiode and infrared receiver module.
Features
High reliability,High radiant intensity,λp=940nm (Peak wavelength λp=940nm),2.54mm Lead spacing,Low forward voltage),
Pb free,This product itself will remain within RoHS compliant version.
Applications
Remote control,Optoelectronic switch,Smoke detector,Smart Appliances,Locker sensor,Infrared applied system,Touch switch.
Forward voltage:1.2-1.5V
Reverse current:10μA
Radiant intensity@20MA:15-48mW/sr
Spectral band width:40NM
Peak wavelength:940NM
Viewing Angle:20deg
Forward Current:100mA
Peck forward current:1A
Reverse Voltage:5V
Power Dissipation:150MW
Operation temperature:-25 to +80℃
Storage temperature:-35 to +85 ℃
Soldering temperature:260 ℃Wave soldering, 3mm out of physical body, ≤3S
Notes*1: IFP Conditions-Pulse Width≤100μs and Duty≤1%
