DIP LED LAMP
-

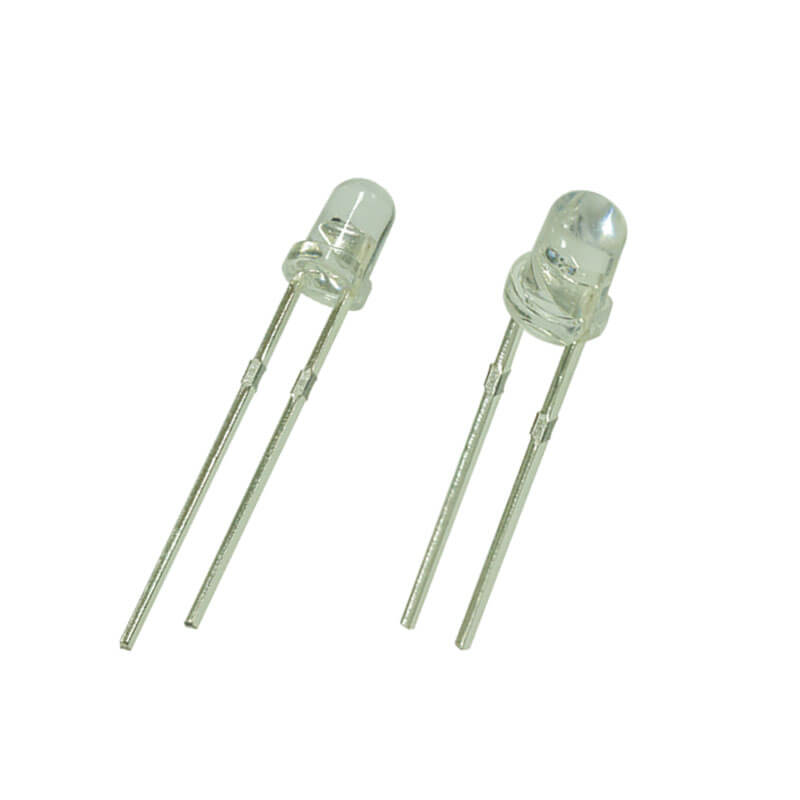

DIP LED LAMPPTH 3mm 5mm 8mm 10mm red yellow blue green white purple pink amber dip led diodeAdd to cartPower:0.06-0.5W PTH 3mm 5mm 8mm 10mm red yellow blue green white purple pink amber dip led diode
CCT/Waverlength: Phosphor Converted red yellow blue green white purple pink amber led diode
Package:LED diode
Voltage:2v/3v
-
546led dip chip 546 red yellow blue green RGB led diodeAdd to cartPower:0.06-0.15W
CCT/Waverlength: red yellow blue green amber RGB led diode
Package:LED diode
Voltage:2v/3v
-
5MM5mm dip RED/GREEN/BLUE Triple Color LED RGB common anode diode light diodeAdd to cart5mm dip RED/GREEN/BLUE Triple Color LED RGB common anode diode light diode
Power:0.2W
Voltage: Red:1.8-2.3V; Blue:3-3.4v; Green:3-3.4V
Current:3*20mA
Wavelength:Red:620-630nm, Blue: 460-470nm; Green:520-530nm
Viewing Angle:30degree lens
Light intensity:Red:600-800MCD, Blue: 600-900MCD; Green:3000-4000MCD;
size:dip 5MM
-

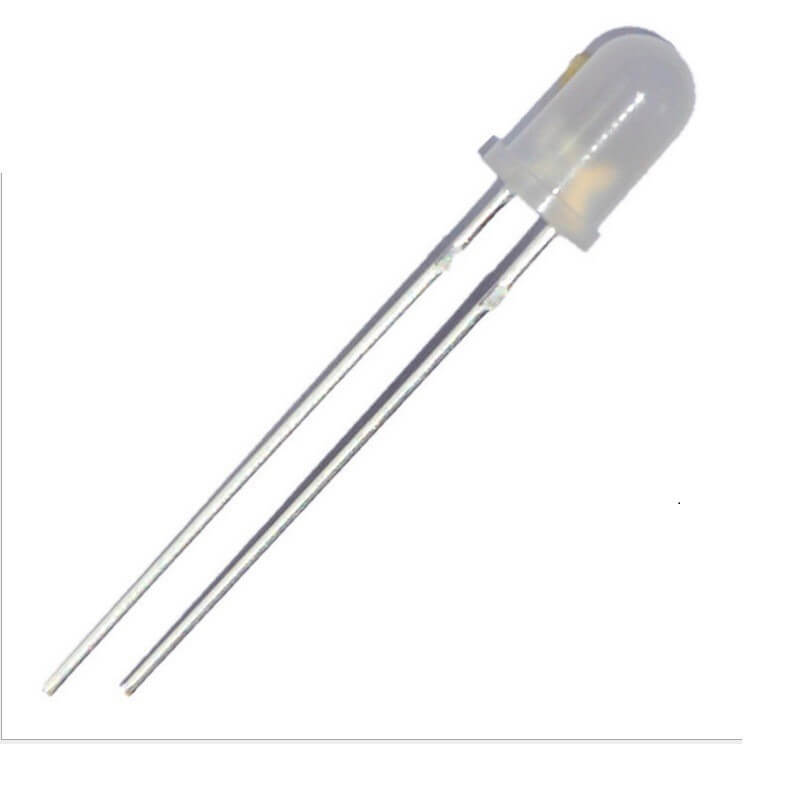

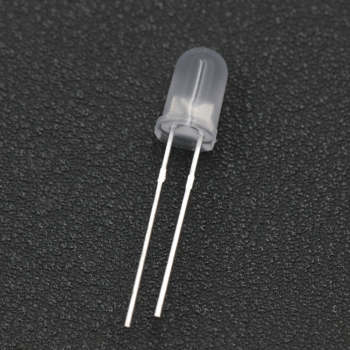

5MMdip led diffused 5mm red yellow blue green white led light emitting diodeAdd to cartdip led diffused 5mm red yellow blue green white led light emitting diode
size:5MM
leg :19-17MM
Operating Temperature Range:-40°C to + 85°C
Reverse Current:10 μA
Reflow Soldering Condition:260°C for 10 Seconds Max
1. Features
◼ High Luminous intensity output.
◼ Low power consumption & High efficiency.
◼ Superior resistance to moisture
◼ Lead free & Halogen free & RoHS Compliant2. Applications
◼ Video message sign
◼ Traffic sign
◼ Message sign -
infrared led/IRM laser diodeInfraRed Emitting Diode 5mm 940nm launch tube blue clear dip ledAdd to cartInfraRed Emitting Diode 5mm 940nm launch tube blue clear dip led
Forward voltage:1.2-1.5V
Reverse current:10μA
Radiant intensity@20MA:15-48mW/sr
Spectral band width:40NM
Peak wavelength:940NM
Viewing Angle:20deg
Forward Current:100mA
Peck forward current:1A
Reverse Voltage:5V
Power Dissipation:150MW
Operation temperature:-25 to +80℃
Storage temperature:-35 to +85 ℃
Soldering temperature:260 ℃Wave soldering, 3mm out of physical body, ≤3S
Notes*1: IFP Conditions-Pulse Width≤100μs and Duty≤1%
-
5MMLED pth round 5mm 2v red difuse 620-630nm dip led lampAdd to cartLED pth round 5mm 2v red difuse 620-630nm dip led lamp
Working current: 20 (mA)
Item number: 5mm round head with short legs and red color
Working voltage: 1.8-2.2 (V)
Power: 0.06 (W)
Brand: GZYSLED
Dimensions: 5 (mm)
Model: 5mm round head with short legs and color
Thermal resistance: ≤5 (°/W)
Luminous angle: 30 (°)
Luminous efficiency: 200-800mcd
Chip brand: Taiwan -
infrared led/IRM laser diodedip led 5.0mm through hole package 850nm Black colloid emission tubeAdd to cartdip led 5.0mm through hole package 850nm Black colloid emission tube
Forward Voltage:1.4 -.8 V
Forward Current:100mA
Test Temperature:25℃
Luminous Intensity:200-600mw @100mA
Wavelength WL :840 850 860 nm ±2nm
Lighting Angle Emission Angle :10 deg
Reverse Current IR：5 μAReverse voltage Vr: 5 V
Operating temperature Topr: -30～+85 ℃
Storage temperature Tstg: -40～+85 ℃
Soldering temperature Tsol: 260±5℃（for4sec） ℃
Power consumption Pd: 150 mW
Pulse current IFP: 1000 mAApplications:
Remote control
Infrared photoelectric switch
Smoke detector
Smart appliances
Locker sensor
Infrared applied system
Touch switch -

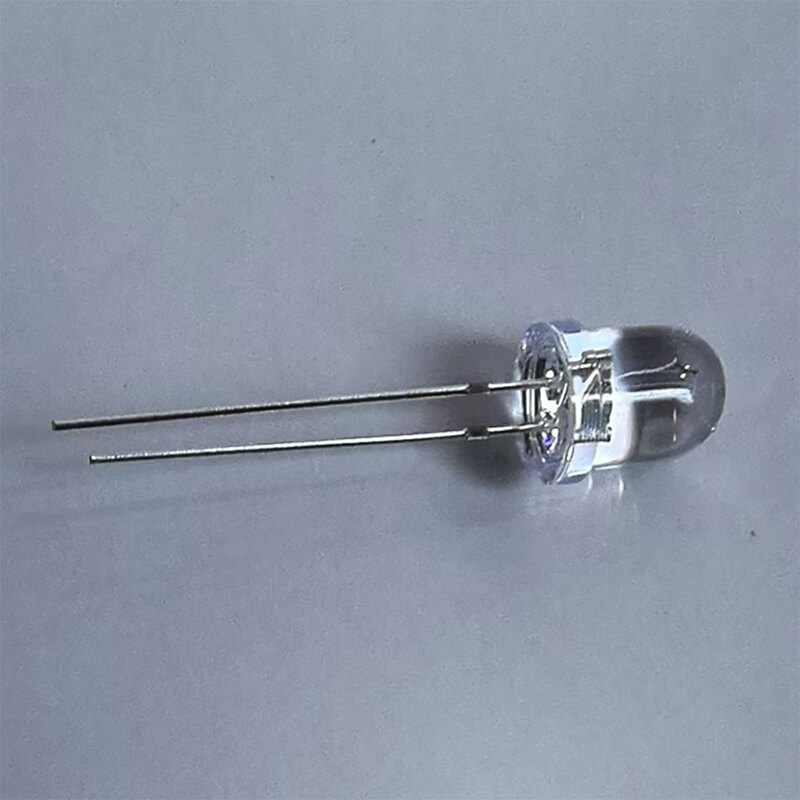

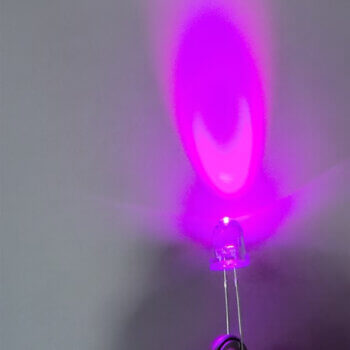

8MM8mm round pink LED lampAdd to cart8mm round pink LED lamp
Absolute Maximum Ratings at Ta=25℃
Parameter Symbol Rating Unit
Forward Current IF: 30 mA
Operating Temperature Topr :-40 to +85 ℃
Storage Temperature Tstg :-40 to +85 ℃
Soldering Temperature*1 Tsol :260±5 ℃
Power Dissipation Pd :100 mW
Reverse Voltage VR :5 V
Peak Forward Current*2 IFP: 100 mA
ESD (Human body mode) ESD :2000 V
*1:Soldering time ≦ 5 seconds. *2.Pulse Width≦ 100μs and Duty≦ 1%. Electrical and Optical Characteristic
Parameter Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF IF=20 mA ∕ :2.8 3.5 V
Reverse Current IR VR= 5 V ∕ ∕ 10 μA
Luminous Intensity IV IF=20 mA :2000 ∕ mcd
Viewing Angle 2θ1/2 IF=20 mA ∕ 60 ∕ deg
Dominant Wavelength λd IF=20 mA:pink
