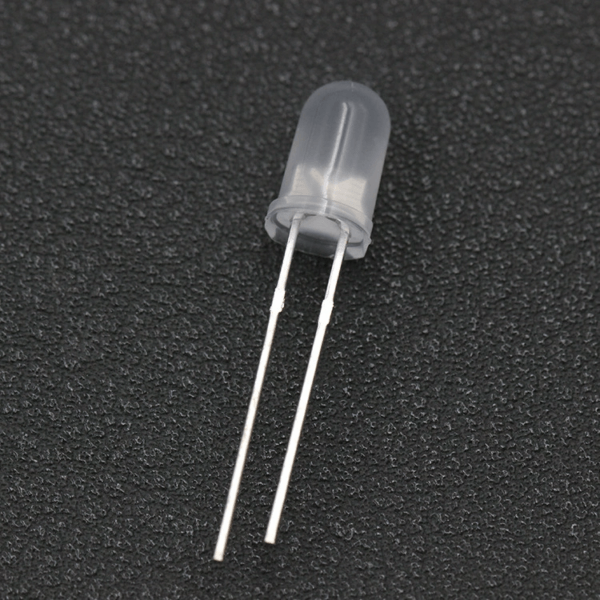

dip led diffused 5mm red yellow blue green white led light emitting diode
size:5MM
leg :19-17MM
Operating Temperature Range:-40°C to + 85°C
Reverse Current:10 μA
Reflow Soldering Condition:260°C for 10 Seconds Max
1. Features
◼ High Luminous intensity output.
◼ Low power consumption & High efficiency.
◼ Superior resistance to moisture
◼ Lead free & Halogen free & RoHS Compliant
2. Applications
◼ Video message sign
◼ Traffic sign
◼ Message sign
| wavelength/cct | voltage(v) | current(mA) | power(w) | view angle | IV mcd |
| red | 1.8-2.4v | 20ma | 0.06w | 25 | 500-600mcd |
| yellow | 1.8-2.4v | 20ma | 0.06w | 25 | 500-600mcd |
| blue | 2.8-3.4v | 20ma | 0.06w | 25 | 600-800mcd |
| green | 2.8-3.4v | 20ma | 0.06w | 25 | 1500-2000mcd |
| white/warm white/natural white | 3000k/4500k/6000k/10000k | 20ma | 0.06w | 25 | 2000-3000mcd |
| orange | 1.8-2.4v | 20ma | 0.06w | 25 | 500-600mcd |
