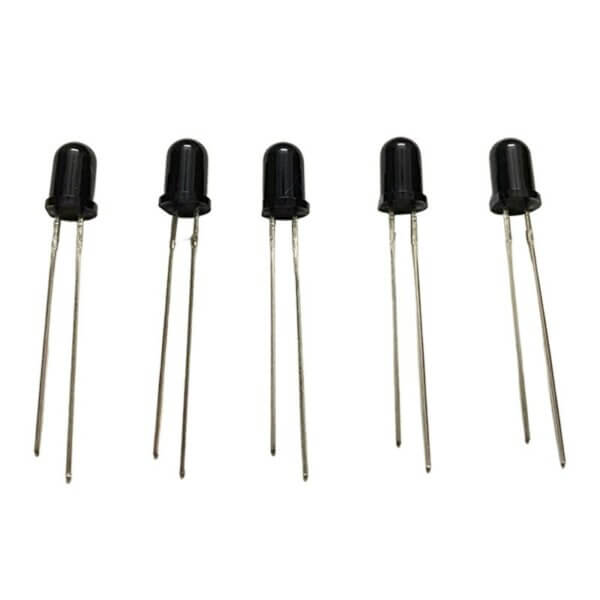

dip led 5.0mm through hole package 850nm Black colloid emission tube
Forward Voltage:1.4 -.8 V
Forward Current:100mA
Test Temperature:25℃
Luminous Intensity:200-600mw @100mA
Wavelength WL :840 850 860 nm ±2nm
Lighting Angle Emission Angle :10 deg
Reverse Current IR：5 μA
Reverse voltage Vr: 5 V
Operating temperature Topr: -30～+85 ℃
Storage temperature Tstg: -40～+85 ℃
Soldering temperature Tsol: 260±5℃（for4sec） ℃
Power consumption Pd: 150 mW
Pulse current IFP: 1000 mA
Applications:
Remote control
Infrared photoelectric switch
Smoke detector
Smart appliances
Locker sensor
Infrared applied system
Touch switch
