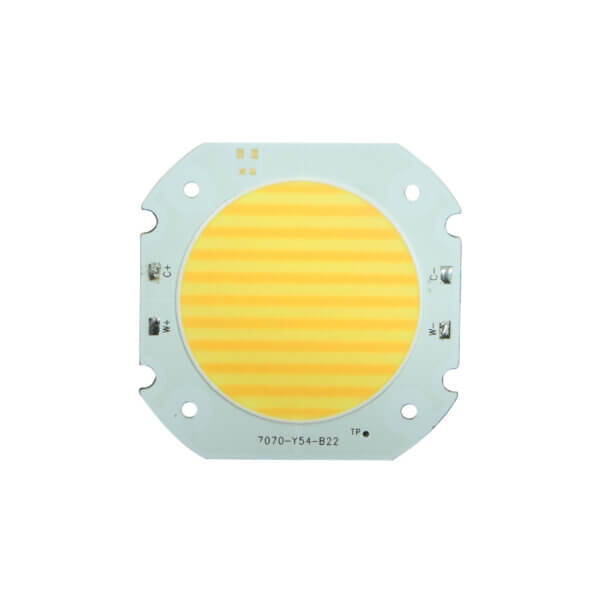

COB LED 7070 Bi Color Ra95 72V 2700K and 6500K with Heat Sink
Mechanical Dimensions：70mm× 70mm× 3.1mm ,
Shiny surface:54mm
Package Structure：GAN luminous Copper substrate
Characteristic function：Any color temperature can be customized
Thermal Resistance：0.1Ċ/W
Maximum drive current：8280mA×2
Ultra high optical density：333LM/CM
CRI:95+
Bi color: 2700K+6500K
DC Voltage:68-76V
2700K:40000-45000LM
6500:50000-55000LM
LED Junction Temperature (T j ):150℃
Operating Case Temperature1 (Tc):85°C
Soldering Temperature:350°C or lower for a maximum of 6 seconds
Electrostatic Discharge (HBM):2000V
Maximum Drive Current:6900mAx2
