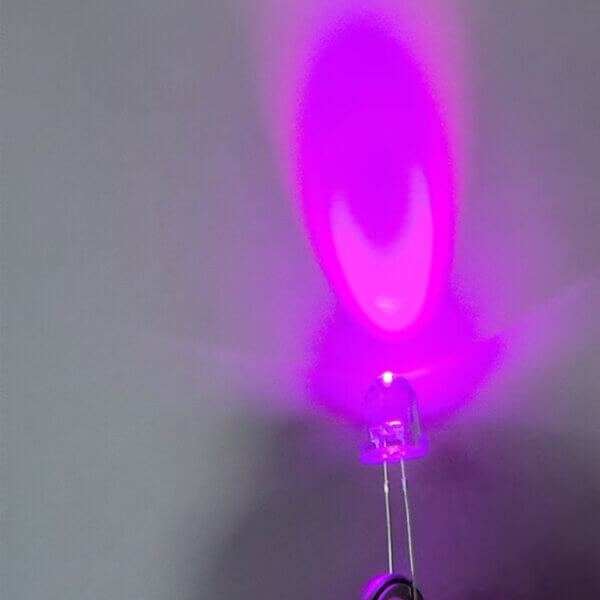

8mm round pink LED lamp
Absolute Maximum Ratings at Ta=25℃
Parameter Symbol Rating Unit
Forward Current IF: 30 mA
Operating Temperature Topr :-40 to +85 ℃
Storage Temperature Tstg :-40 to +85 ℃
Soldering Temperature*1 Tsol :260±5 ℃
Power Dissipation Pd :100 mW
Reverse Voltage VR :5 V
Peak Forward Current*2 IFP: 100 mA
ESD (Human body mode) ESD :2000 V
*1:Soldering time ≦ 5 seconds. *2.Pulse Width≦ 100μs and Duty≦ 1%. Electrical and Optical Characteristic
Parameter Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF IF=20 mA ∕ :2.8 3.5 V
Reverse Current IR VR= 5 V ∕ ∕ 10 μA
Luminous Intensity IV IF=20 mA :2000 ∕ mcd
Viewing Angle 2θ1/2 IF=20 mA ∕ 60 ∕ deg
Dominant Wavelength λd IF=20 mA:pink
Applications of 8MM Pink Through – Hole LEDs
1. Decorative Lighting
1.1 Festival Decorations
During festivals like Christmas and Valentine’s Day, 8MM pink through – hole LEDs are widely used in making festival light strings. For instance, at Christmas, when combined with green foliage, they can create a warm, romantic, and festive atmosphere. On Valentine’s Day, their soft pink light can be used to decorate restaurants, hotels, and other places, providing a romantic dining and dating environment for couples.
1.2 Home Decor
They can be applied to indoor decorative lighting fixtures such as bedside lamps and wall lamps. The pink light emitted creates a comfortable and relaxing ambiance, especially suitable for rest areas like bedrooms. It helps relieve people’s fatigue and improves the comfort of living. In addition, in some personalized home decorations, like creative handmade lamps, 8MM pink through – hole LEDs can serve as unique light sources, adding an artistic touch to the home.
2. Indication and Signage
2.1 Commercial Place Indication
In commercial buildings such as shopping malls, hotels, and office buildings, pink through – hole LEDs can be used as light sources for various indication signs. For example, in emergency exit signs, their eye – catching pink light can quickly attract people’s attention in case of an emergency and guide the evacuation of the crowd. Moreover, on the signboards of some specialty stores, 8MM pink through – hole LEDs can highlight the store’s style and characteristics, enhancing the signboard’s visibility and attracting customers.
2.2 Electronic Device Indication
On some electronic devices, such as speakers and chargers, they can be used as power or operating status indicators. Compared with common green and red indicators, the pink light adds a unique visual effect to the product, making the electronic device more personalized in appearance.
3. Advertising and Display
3.1 Small – scale Billboards
In small – scale billboards and promotional boards, 8MM pink through – hole LEDs are ideal lighting sources. For example, the signboards of street – side food stalls and the promotional boards in front of flower shops. By using these LEDs, the advertising content can be more prominent at night, attracting the attention of passers – by and improving the advertising effect.
3.2 Display Cabinet Lighting
In display cabinets for jewelry, cosmetics, etc., the pink light can create a soft and attractive atmosphere. For jewelry, it can set off the luster and texture of the jewels. For cosmetics, it can make the products look more appealing, attracting consumers to make purchases.
