8MM
-
DIP LED LAMPPTH 3mm 5mm 8mm 10mm red yellow blue green white purple pink amber dip led diodeAdd to cartPower:0.06-0.5W PTH 3mm 5mm 8mm 10mm red yellow blue green white purple pink amber dip led diode
CCT/Waverlength: Phosphor Converted red yellow blue green white purple pink amber led diode
Package:LED diode
Voltage:2v/3v
-

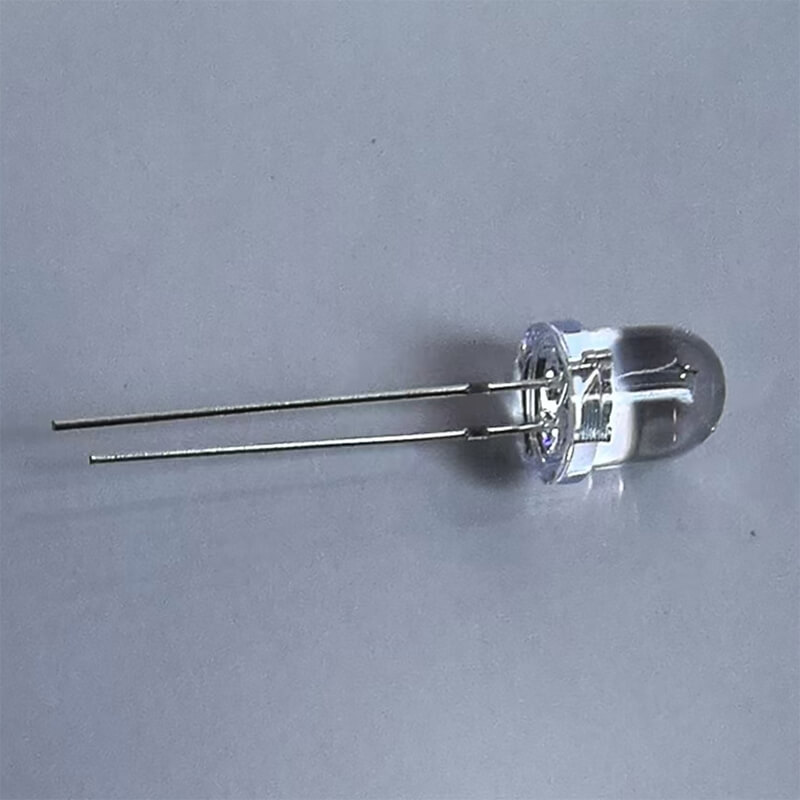

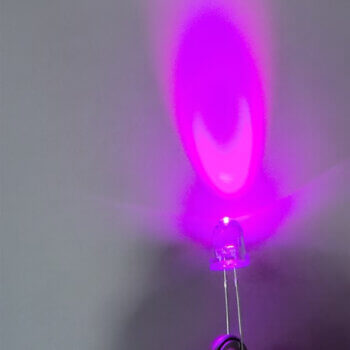

8MM8mm round pink LED lampAdd to cart8mm round pink LED lamp
Absolute Maximum Ratings at Ta=25℃
Parameter Symbol Rating Unit
Forward Current IF: 30 mA
Operating Temperature Topr :-40 to +85 ℃
Storage Temperature Tstg :-40 to +85 ℃
Soldering Temperature*1 Tsol :260±5 ℃
Power Dissipation Pd :100 mW
Reverse Voltage VR :5 V
Peak Forward Current*2 IFP: 100 mA
ESD (Human body mode) ESD :2000 V
*1:Soldering time ≦ 5 seconds. *2.Pulse Width≦ 100μs and Duty≦ 1%. Electrical and Optical Characteristic
Parameter Symbol Condition Min. Typ. Max. Unit
Forward Voltage VF IF=20 mA ∕ :2.8 3.5 V
Reverse Current IR VR= 5 V ∕ ∕ 10 μA
Luminous Intensity IV IF=20 mA :2000 ∕ mcd
Viewing Angle 2θ1/2 IF=20 mA ∕ 60 ∕ deg
Dominant Wavelength λd IF=20 mA:pink
