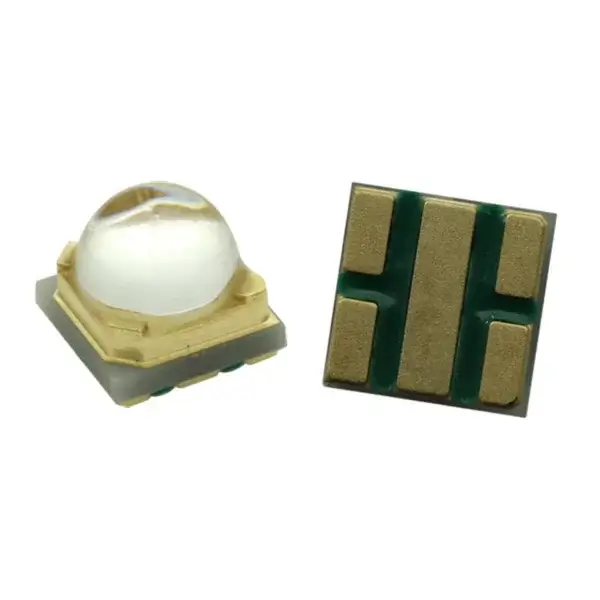

320nm 325nm 330nm LED SMD diode for UVA Narrowband Phototherapy lamps

320nm 325nm 330nm LED SMD diode for UVA Narrowband Phototherapy lamps

Specifications:0.5W/ 3W

1. Shapes: square
2. Emitting color:  320-325NM
3. Temp Color:

    DC forward voltage (VF):  5-6.5V

4. Lens : quartz glass lens
5. Life Span: 30,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 60 degree
8.Forward Current: 0.5W 100-150MA 15-25MW, 3W 350-500MA 50-70MW

Category:

Why Us?

  • High Quality
  • Quick Response
  • Reasonable Price

320nm 325nm 330nm LED SMD diode for UVA Narrowband Phototherapy lamps

Specifications:0.5W/ 3W

1. Shapes: square
2. Emitting color:  320-325NM
3. Temp Color:

    DC forward voltage (VF):  5-6.5V

4. Lens : quartz glass lens
5. Life Span: 30,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 60 degree
8.Forward Current: 0.5W 100-150MA 15-25MW, 3W 350-500MA 50-70MW

(UVC 250-350NM)Applications :

1. Sterilization and disinfection;
2.Air and water purification;
3. UV detection and communication technology;
4.Food processing and preservation, food and beverage packaging, fresh storage, etc.;
5. medical care, dermatological treatment, etc;

3535(335NW  5-6.5V)  Reflow temperature 180-230 ℃

Dimension

3.5*3.5*2.9mm

Power Consumption

0.5W/3W

Peak Wavelength

320-325-330NM

Radiant Flux

0.5W 15-25MW/ 3W 50-70MW

Spectrum Half Width

10NW

Forward Current

0.5W 100-150MA, 3W 350-500MA

Application

UVB Narrowband Phototherapy lamps
