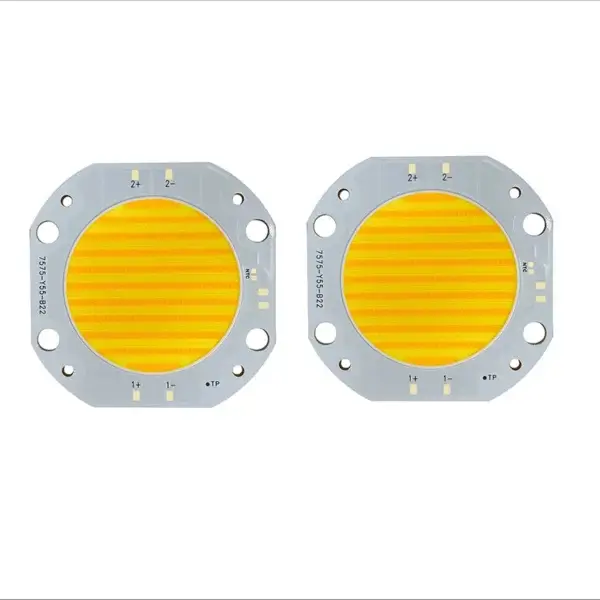

2*600W 55-65V Bi color 2700K with 6500K Ra95 TLCI97 LED light source
Power:2*600w
Current:10A*2
Voltage:55-65V
CCT:2700k+6500K (can be customized other color)
Mechanical Dimensions:75*75*3.1mm
Package Structure:GAN luminous Copper substrate
Chromaticity Range:DUV±0.002
Thermal Resistance:0.1Ċ/W
Maximum drive current:12000 mA*2
Ultra high optical density:333LM/CM²
LED Junction Temperature (T j ):150℃
Operating Case Temperature1 (Tc):85°C
Soldering Temperature:350°C or lower for a maximum of 6 seconds
Product Description:
Compared with matrix dual-color light source, imported grain can provide higher optical density up to over 600%;
Based on osram LE packaging technology platform design 600W can work stably;
Optimized design to achieve high system performance compact arrangement and reduce system level optical loss;
At the same time retain mechanical and optical compatibility, systematic realization of multicolor to meet different use conditions;
Optimized black body track drop spot for high quality special field lighting;
Applications include stage lighting and film lighting.
