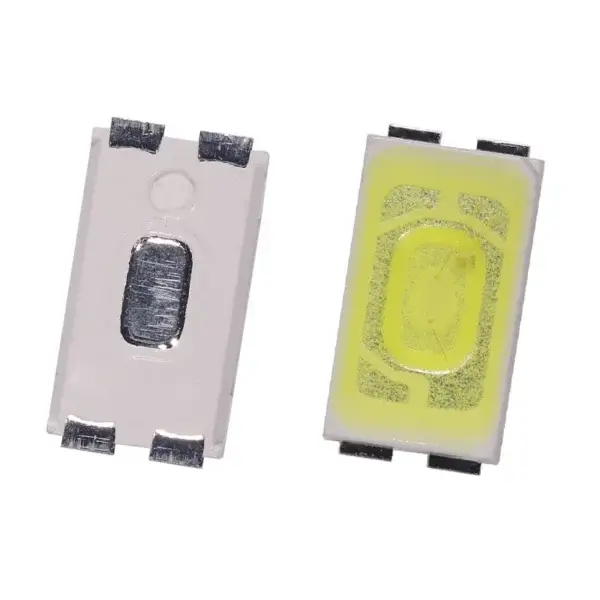

0.5W1W 3v6v smd Phosphor Converted cold white led 5630 diode for tv backlight
Specifications: 0.5-1W
1. Shapes: square
2. Emitting color:
Phosphor Converted cold white10000-15000k/15000-20000k
3. DC forward voltage (VF): 3v/6v
4. led type :5630
5. Life Span: 50,000 Hours
6. With RoHS & CE Approved
7. Beam angle: 120 degree
8.Forward Current: 0.5W 150mA,1W 3v 300-350mA; 1W 6V 100-150mA;
9.Size:5.6*3.0*0.8mm
This is a 0.5W SMD LED 5630 diode that is phosphorescently converted to cool white color and is available in color temperatures of 10000K, 15000K and 20000K. It is mainly used for TV backlighting.
Function: This LED diode can provide high-brightness cool white light for lighting and backlighting applications. It has high luminous efficiency and long life.
Application fields: mainly used in TV backlight, which can provide uniform backlight effect and enhance the brightness and contrast of TV screen. In addition, it can be used in other lighting applications such as interior lighting, commercial lighting, and billboard lighting.
